i-LiNQ · Guided surgery kit, drills and instruments
i-LiNQ Surgical kit: Surgical kit
Guide kit, final drills Ø2.5 – Ø5.2, torque ratchet and hex driver for the low-speed i-LiNQ® drilling protocol.
Variants and codes
- Brand
- i-LiNQ — Implant and abutment system
- Family
- Surgical kit
- Type
- Guided surgery kit, drills and instruments
- Category
- Surgical kits
Features
Protocol
- 01
Pilot drill 2.0 mm
50 rpm without irrigation or 600 rpm with irrigation; at least 1 mm of bone should remain vestibularly and orally.
- 02
Low-speed drilling
Bone chips harvested by the drills are ready for augmentation.
- 03
Insertion
≤ 50 Ncm at ≤ 30 rpm; the final drill diameter is chosen for the bone quality.
- 04
Crestal support
Bone chips are placed into the circular gap between implant and osteotomy before wound closure.
Variants
Instruments
| Instrument | Sizes |
|---|---|
| Pilot drill | Ø2.0 mm |

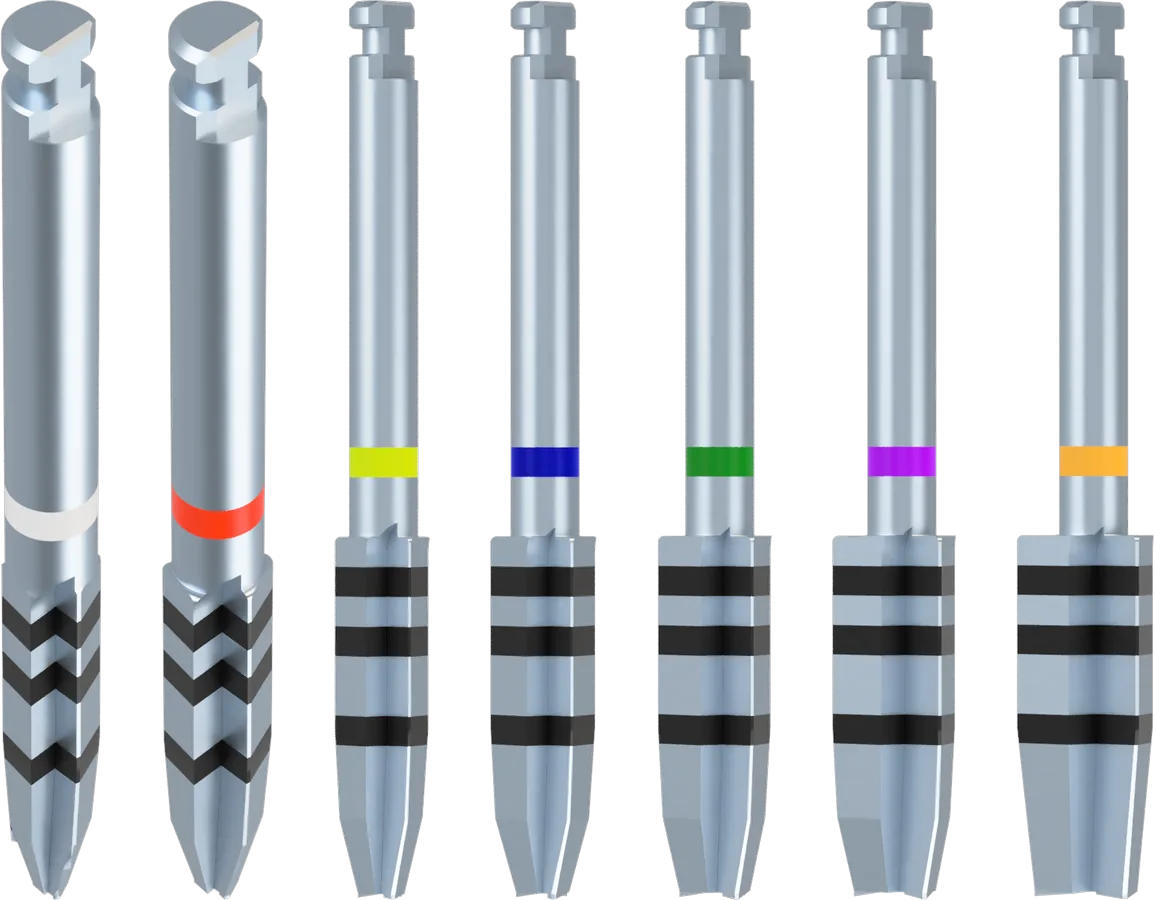

| Final drills | Ø2.5 · 2.8 · 3.3 · 3.7 · 4.2 · 4.7 · 5.2 mm |
| Torque ratchet | seating at 15 Ncm; insertion up to 50 Ncm |
| Hex driver | 1.2 mm, long and short |

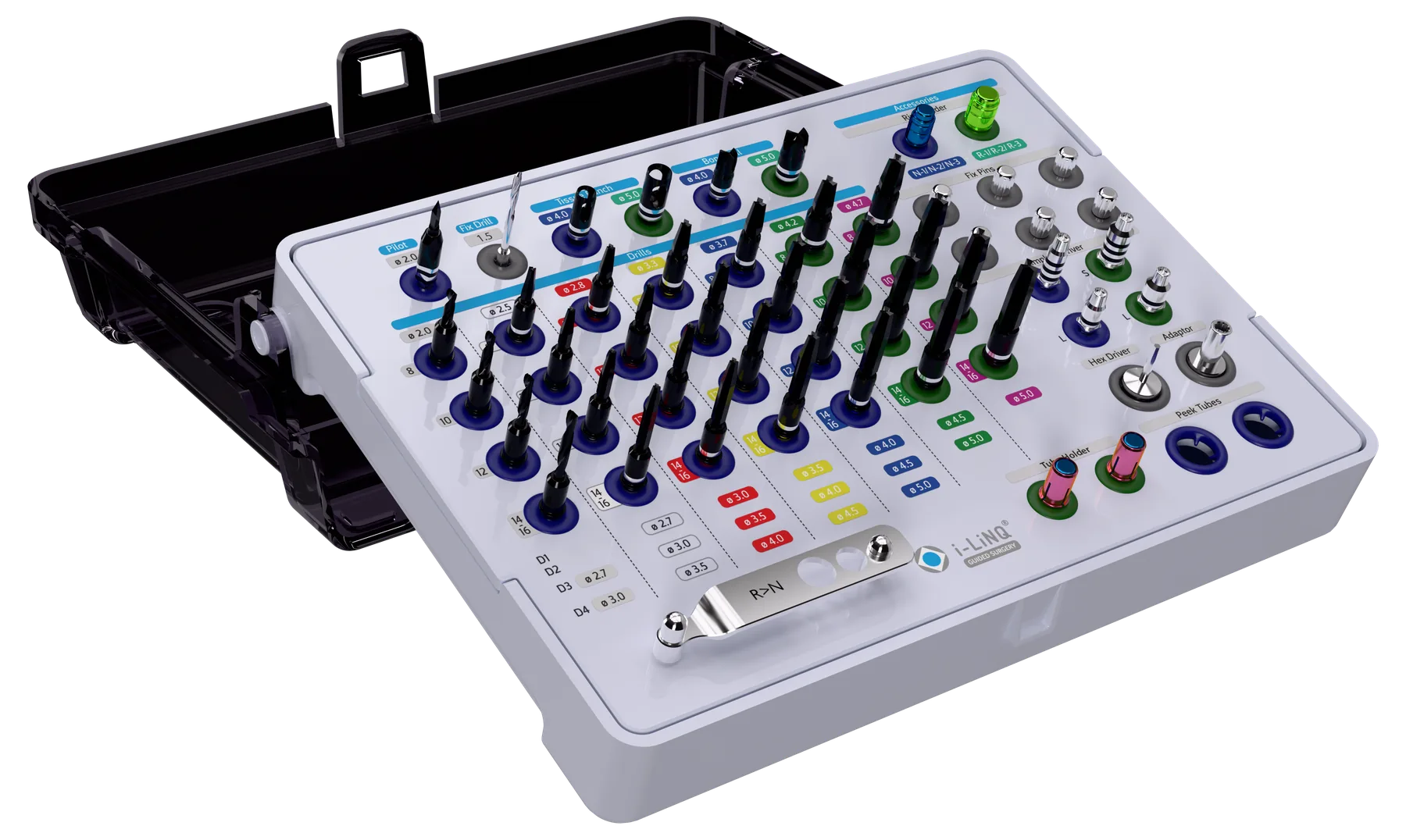

| Guided surgery kit | template-guided preparation |
Documents
Catalogs and documents
Compatible with
Documented compatibility
Only combinations stated in the product documentation are listed here; related products of the same brand are not assumed to be compatible.
- i-LiNQ® Implant →Drill sequence and insertion values from the i-LiNQ® clinical protocol.
