Implant Swiss: Smart choice.
Two-piece implant system: bone level, tissue level, short, narrow and zygomatic implants sharing one conical-hex connection, the SRA surface and a complete prosthetic and digital range.
Explore the rangeSystem specifications

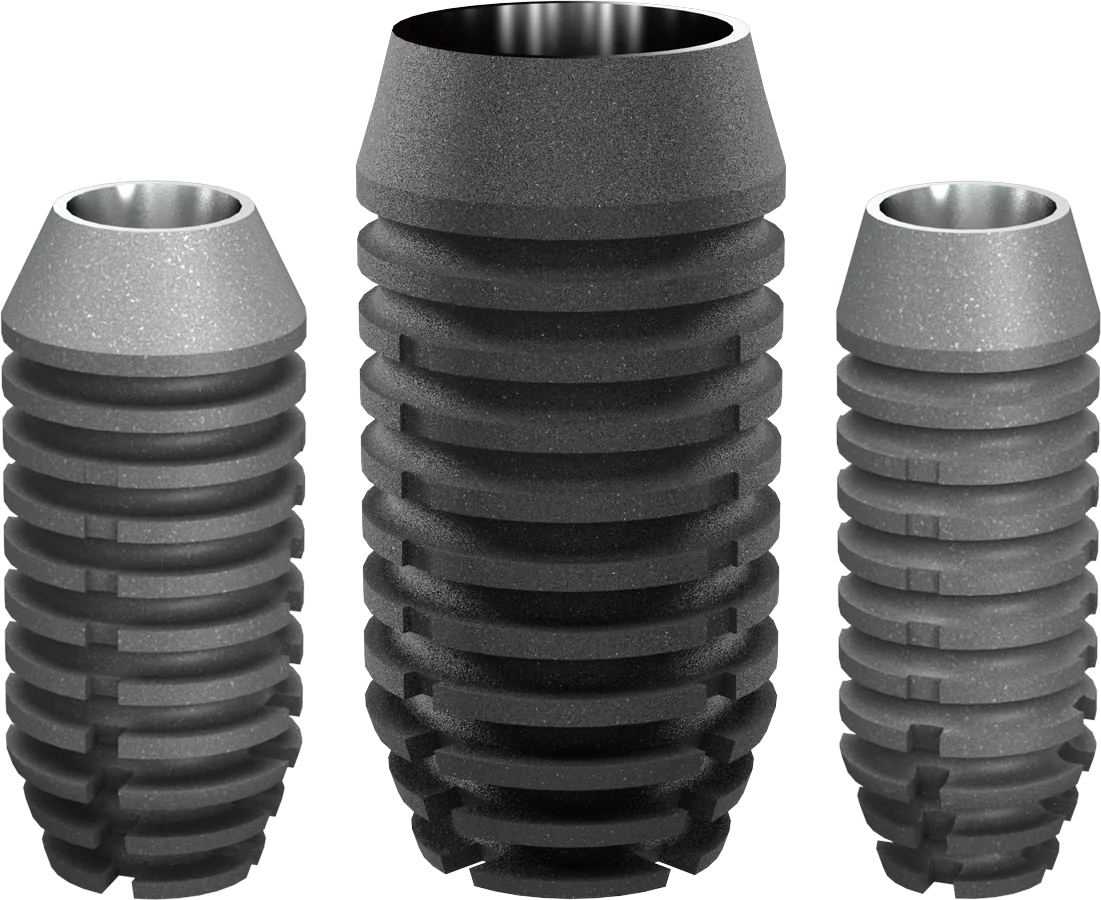

The same design logic runs through every Bone Level and Tissue Level fixture.
- 01Hybrid designStraight cylindrical neck over a tapered apical body: minimal stress on the crestal cortical bone, easy insertion at the osteotomy site.
- 02SRA surfaceSandblasted, then double acid-etched: a homogeneous roughness that follows the bone morphology.
- 03Self-cutting edgeSemi-aggressive thread with cutting edges for primary stability in any bone type without transferring stress to the bone.
- 04Structure without micro-threadsNo micro-threads at the cervical area, so plaque is less retentive around the neck and hygiene is easier to maintain.
- 05Conical connection with hexagonal indexA sealed implant–abutment interface that prevents micro-gap formation. All abutments fit all fixture diameters, except Ø3.3.
- 06Platform switchingThe interface is moved away from the alveolar bone to protect the crestal bone around the neck.
- 07Improved thread designThread geometry designed for ideal primary stability in soft and dense bone alike.
- 08Safe apexApex profile for controlled seating close to anatomical structures.
Implant range
Bone Level is the core of the system; Tissue Level, Short, Narrow and Zygoma cover the remaining indications. Bone Level and Tissue Level fixtures are machined from titanium grade 4 and inserted at 35 Ncm.

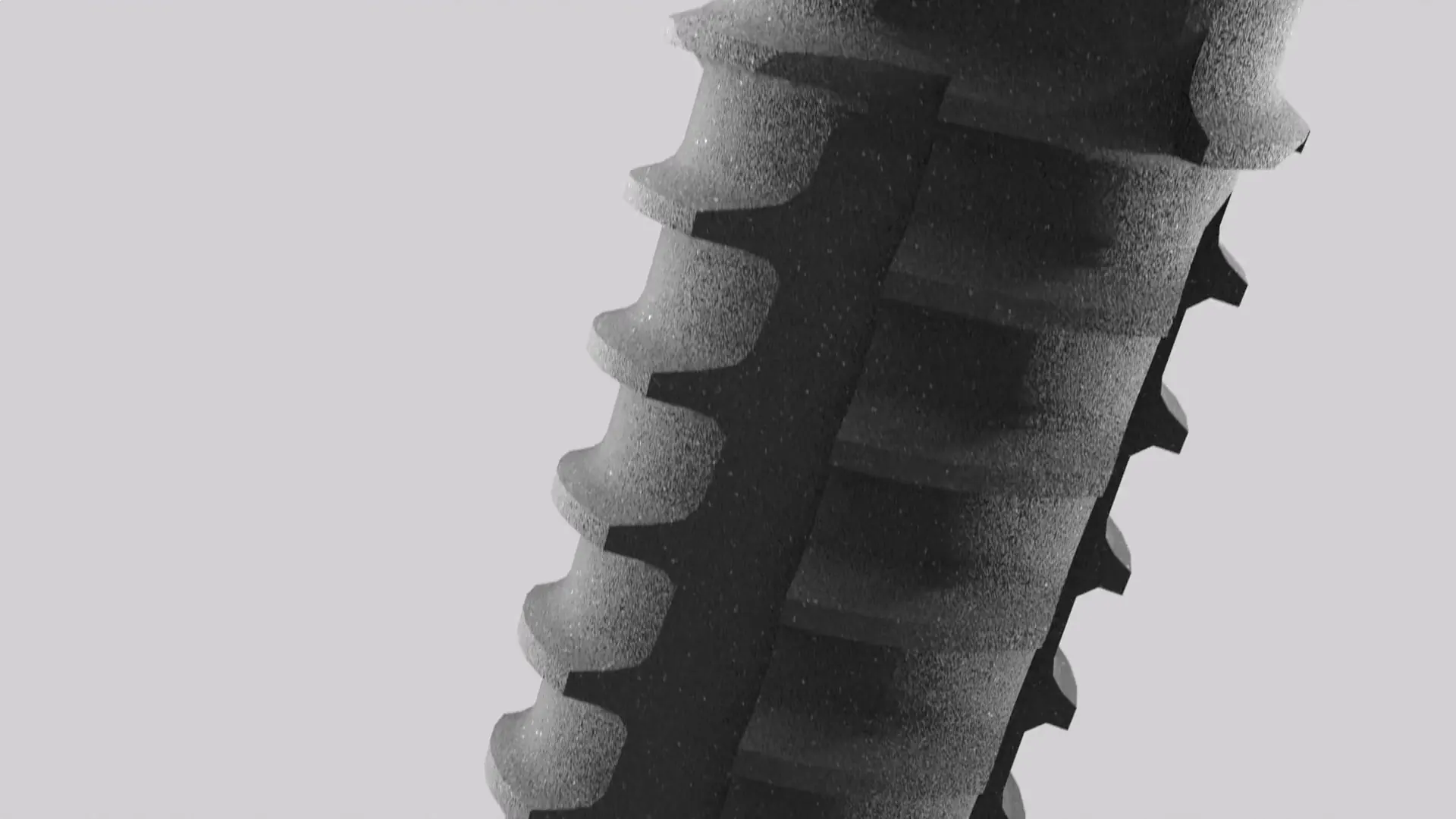

Bone Level — Regular
For any bone quality and any site. The sealed connection sits at bone level, so the emergence profile can be shaped freely in the aesthetic zone.
- Diameter
- Ø3.7 · 4.3 · 4.8 · 5.5 mm
- Length
- 8 · 10 · 12 · 14 mm
- Driver
- Bone Level driver

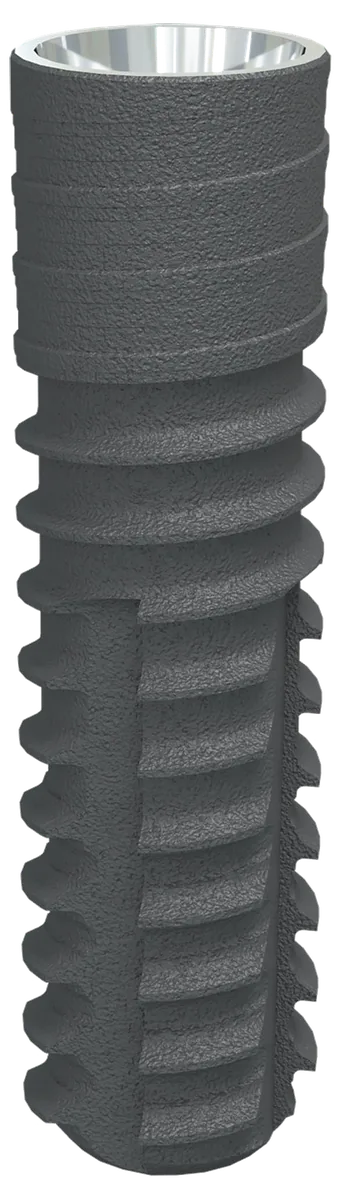

Bone Level — Mini
The Ø3.3 fixture for narrow ridges and reduced mesio-distal space, with its own Mini prosthetic platform and driver.
- Diameter
- Ø3.3 mm
- Length
- 8 · 10 · 12 · 14 mm
- Driver
- Mini Bone driver

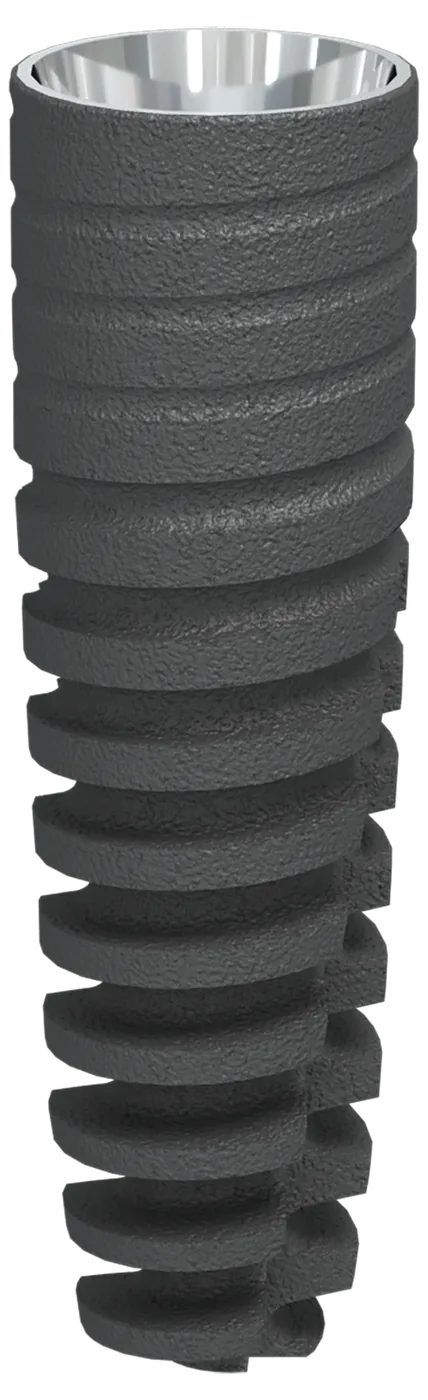

Bone Level — Narrow
Developed for the anterior region where mesio-distal distance or crest width is limited. Indicated for single-tooth restorations only: central and lateral incisors in the mandible, lateral incisors in the maxilla. Not for bridges or edentulous cases.
- Diameter
- Ø2.9 mm (apex Ø2.0)
- Length
- 10 · 12 · 14 mm
- Material
- Titanium grade 5
- Driver
- Narrow driver
Hybrid body, narrow internal connection, passive neck thread and threads deepening towards the apex.
Product details →

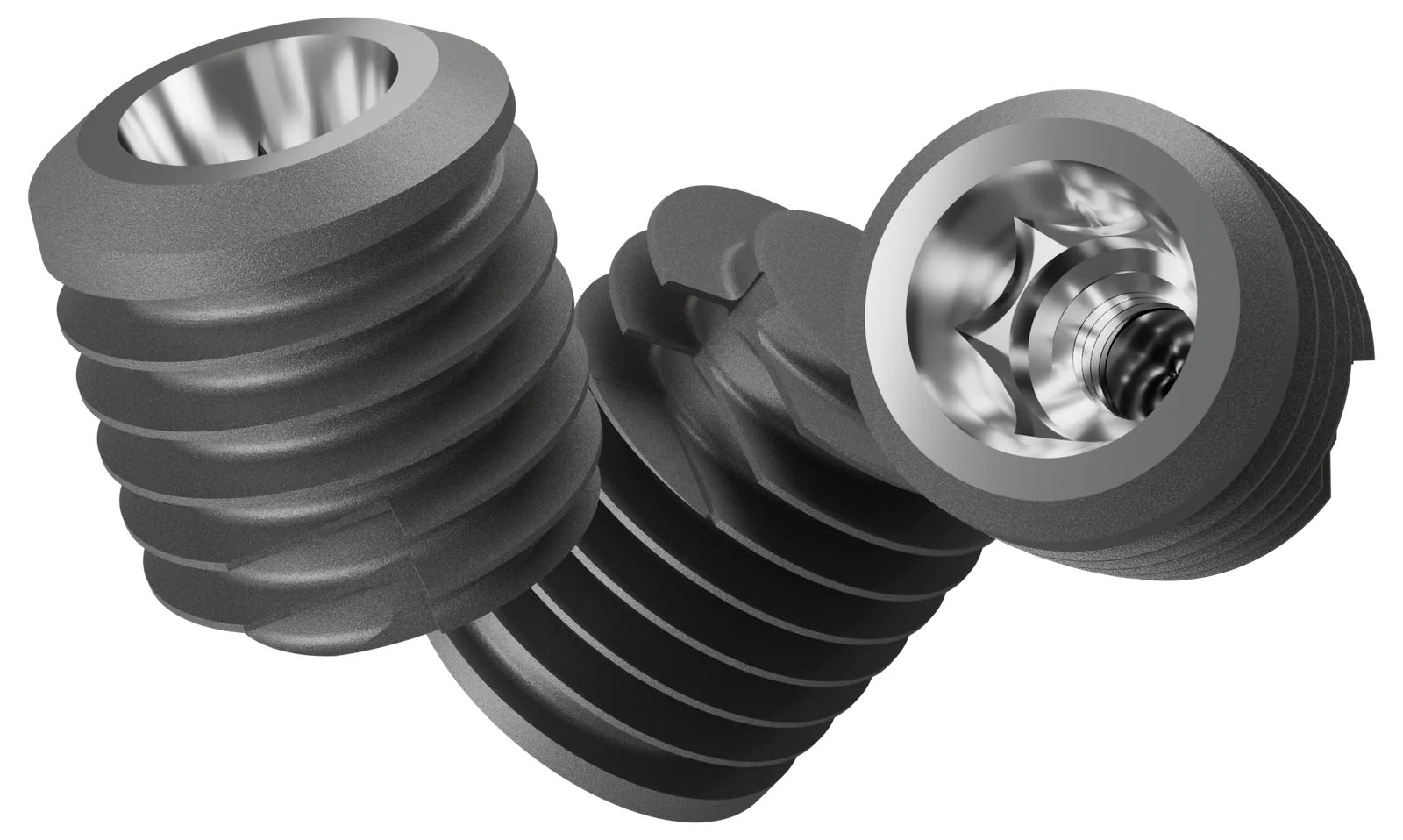

Short
An alternative to advanced surgical procedures where bone height is limited above the mandibular canal or below the maxillary sinus. Bone Level short implants suit the softer maxilla; Tissue Level short implants the mandible.
- Bone Level
- Ø4.3 · 4.8 · 5.5 × 5 · 6 mm
- Tissue Level
- Ø4.3 · 4.8 · 5.5 × 4 · 5 · 6 mm
- Kit
- Short Implant Surgical Kit

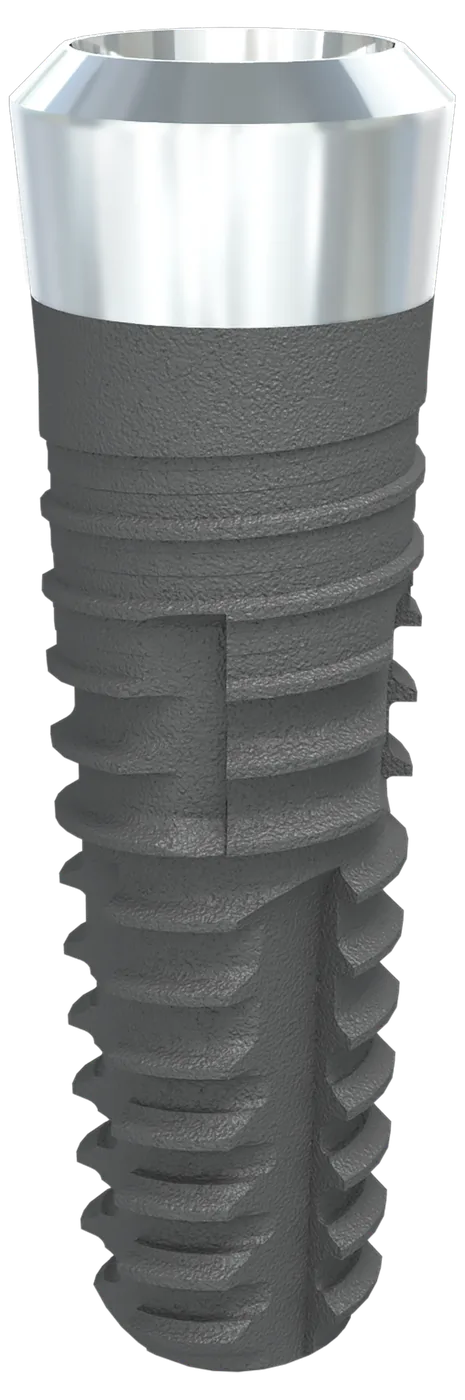

Tissue Level
A smooth machined neck (2.65 mm) places the implant–abutment interface above the bone for soft- and hard-tissue preservation wherever aesthetics is not the primary concern.
- Diameter
- Ø3.7 · 4.3 · 4.8 · 5.5 mm
- Length
- 8 · 10 · 12 · 14 mm
- Driver
- Tissue Level driver
Zygoma
For the severely resorbed maxilla: anchored in the zygomatic bone, without an implant driver, with a 1.5° index-free conical connection and 45° / 55° multi-unit abutments.
- Diameter
- Ø4.0 mm
- Length
- 35 – 60 mm, 2.5 mm steps
- Abutments
- Multi-unit 45° · 55°

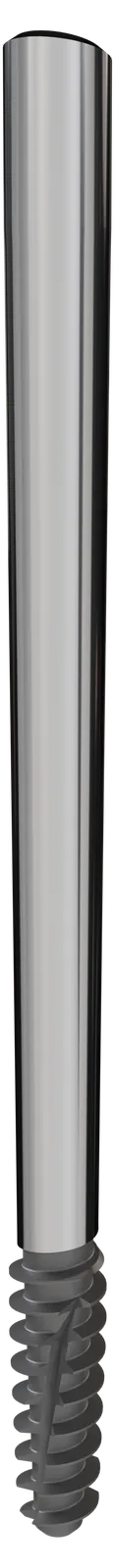

Zygoma implants
Zygomatic implants are designed for complex cases where conventional implants cannot be used and for patients who want to benefit from immediate-loading protocols. Even with minimal residual maxillary bone height they provide primary stability by anchoring in the zygomatic bone.
- Ø4.0 mm, eleven lengths from 35 to 60 mm
- Inserted without an implant driver; 1.5° conical internal connection, index free
- 45° and 55° multi-unit abutments, screwless abutment options
- Surgical kit with Ti-Al-N coated twist drills (Ø2.5 / Ø2.9, short and long), point drill, diamond burr, depth gauges and drill guards
PACE by implantswiss
New-generation implant line engineered for immediate protocols: high primary stability across bone densities, a sloping shoulder with a slim neck for crestal bone preservation, and one prosthetic platform across all diameters.
- Ø3.5 · 4.0 · 4.5 · 5.0 · 5.5 · 6.0 · 7.0 mm — lengths 6 · 8 · 10 · 12 · 14 mm
- 11° morse-tapered internal hexagonal connection, hex Ø2.1 mm
- Two-directional self-cutting edges and a progressively tapered thread
- PEEK tube packaging; surgical kit with DLC-coated drills
PACE superstructures
One prosthetic platform across all PACE diameters simplifies component selection.
Ti-Base abutments
Foundation for screw-retained, CAD/CAM restorations with a precise implant–abutment interface.
- Ø4 · Ø5 mm
- GH 1 · 2 · 3 mm
- Crown 4 · 5 · 7 mm
- Straight · angled ≤ 20°
- Hex · non-hex

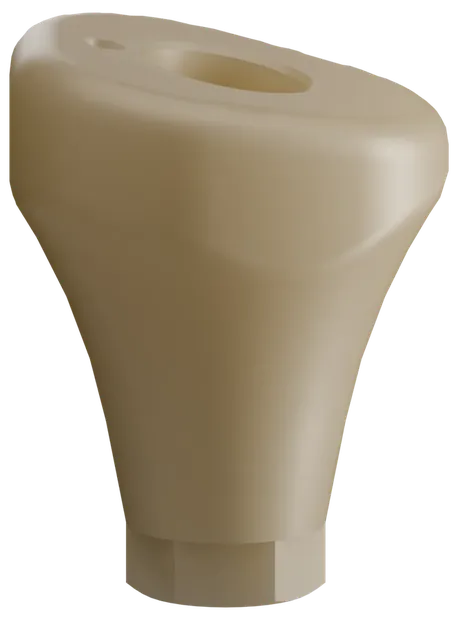

Anatomic abutments
Tooth-shaped single-piece abutments that work like a healing abutment and a scan body; they stay in place through the whole workflow.
- Incisor · premolar · molar
- 12 designs
- GH 5 · 6 · 7 · 9 mm
- Titanium base, zirconia coating

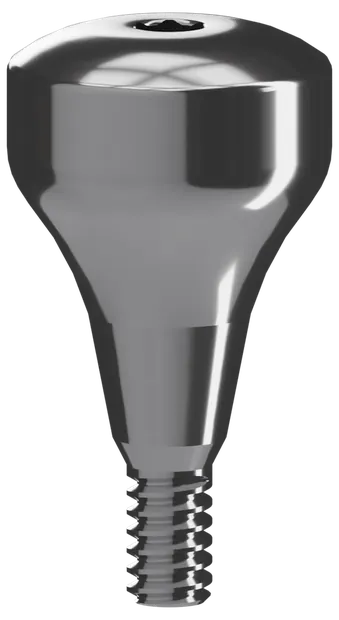

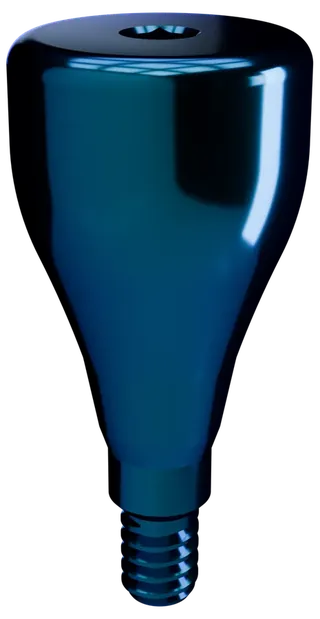

Healing abutments
Colour-anodised healing abutments in a range of diameters and gingival heights.
- Ø4.0 · 5.0 · 6.0 · 8.0 mm
- GH 3 · 4 · 5 · 6 mm
- Ti6Al4V ELI
Surgical kits
Self-stoppered, colour-coded drills for each diameter and length in the system. Recommended at 200–300 rpm to prevent overheating; below 50 rpm without irrigation the drills collect autogenous bone for grafting.
Regular surgical kit
Point, pilot, neck and Lindemann drills, surgical drills Ø2.2 to Ø5.5, parallel pins, depth gauge, drill extension, drivers and torque-controlled ratchet.
Product details →

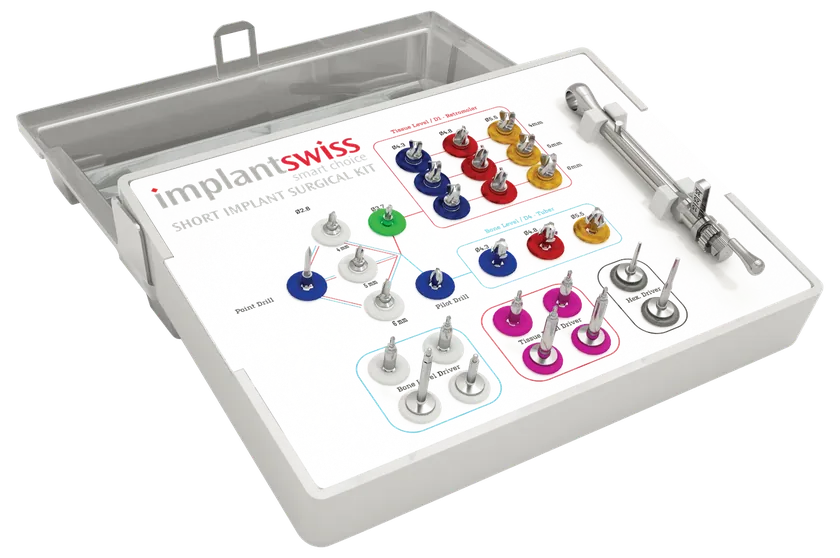

Short implant surgical kit
Bone Level and Tissue Level drills and drivers for 4, 5 and 6 mm implants, with pilot and point drill and torque-controlled ratchet.
Product details →

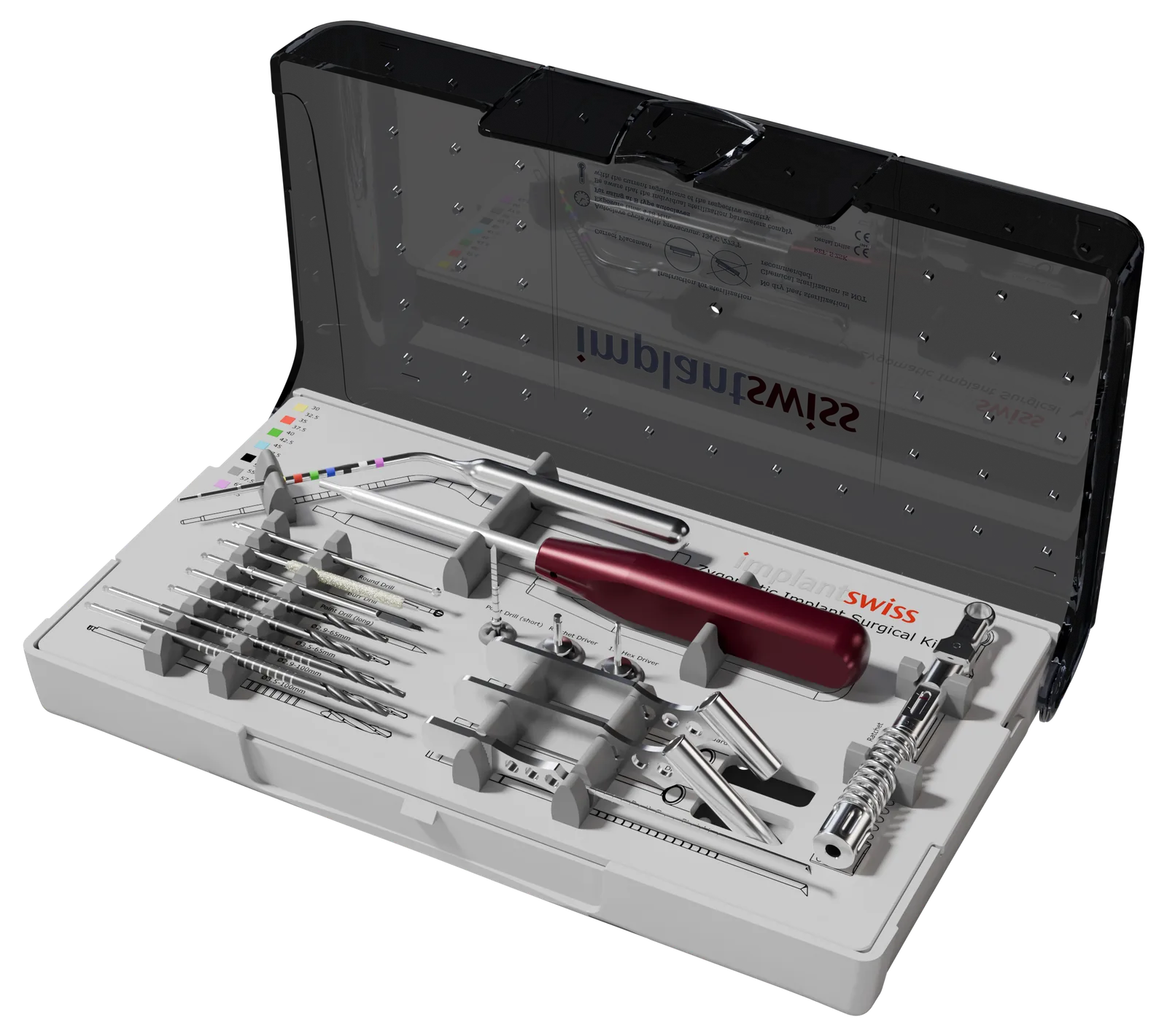

Zygoma surgical kit
Zygoma point drill, diamond burr, Ø2.5 and Ø2.9 twist drills in short and long versions, straight and angled depth gauges, drill guards and handle.
Product details →

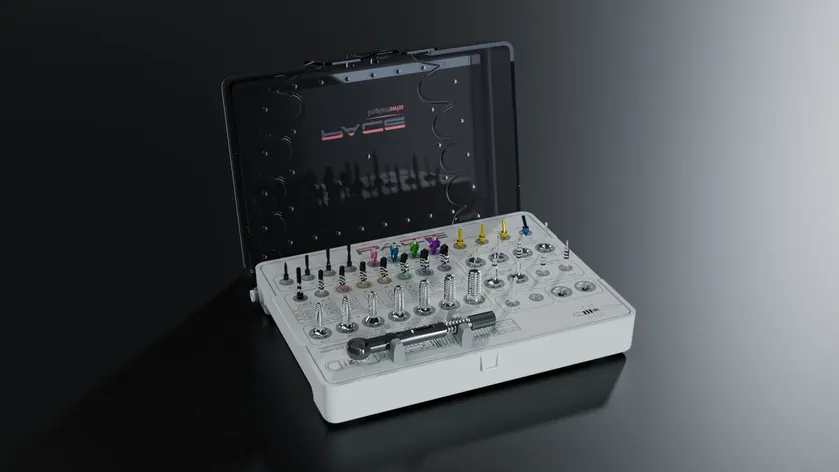

PACE surgical kit
Drills, bone reamers, parallel pins, depth gauges, drivers and tapping tools in a grommet-free stainless-steel tray; DLC-coated drill cutting geometry.
Product details →

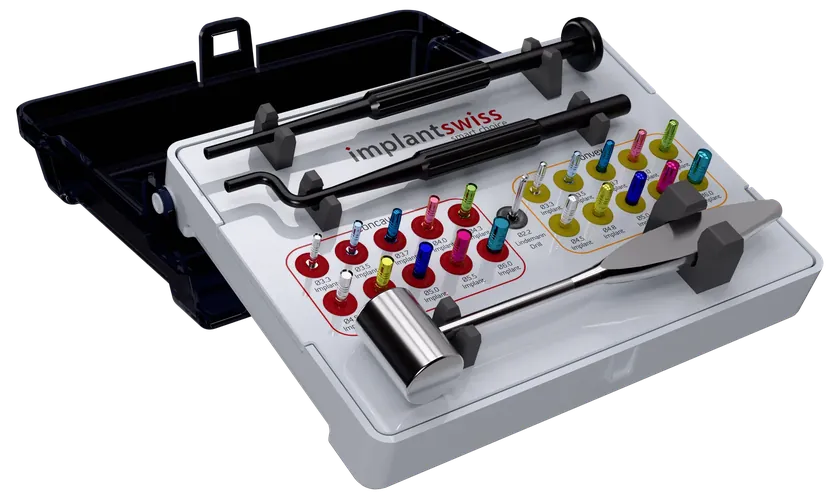

Osteotome and sinus lift kit
Osteotomes and sinus-lift instruments in a dedicated tray.
Product details →
Prosthetic systems
Every abutment fits every Bone Level fixture of any diameter (Ø3.3 Mini has its own platform), so the range is organised by restoration type.
Couple abutment
Cement-retained single crowns and bridges.
Product details →- Narrow · Mini · Regular
- CH 7 mm
- GH 1–5 mm

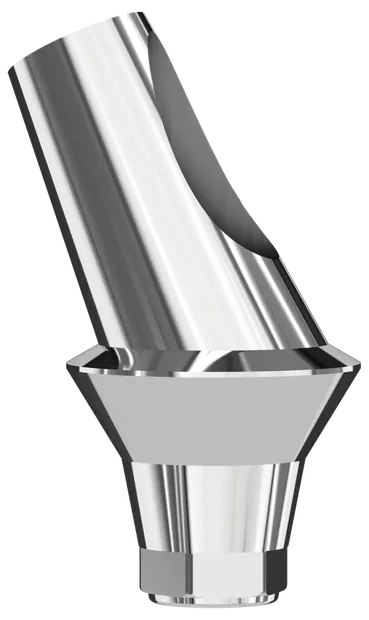

Angled abutment
Cement-retained restorations with axis correction.
Product details →- 15° · 25°
- Narrow: 15° only
- GH 1–5 mm

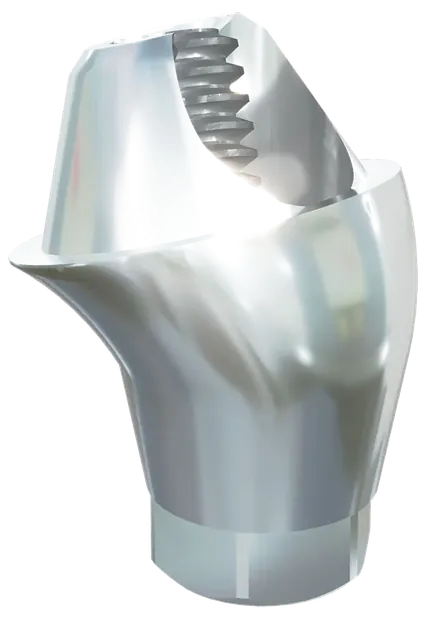

Multi-unit
Screw-retained bridges and full-arch restorations, including the all-on-four technique.
Product details →- Straight · 17° · 35°
- Straight GH 0.5–4.5 mm
- Angled GH 1.0 · 2.5 · 3.5 mm
- Ti grade 5 ELI

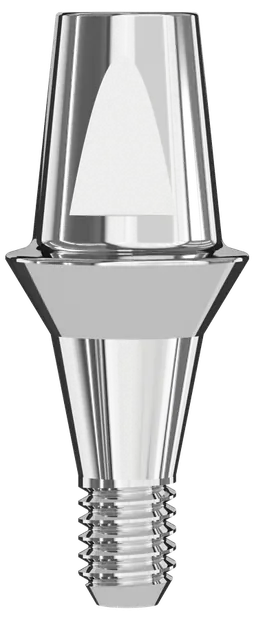

Solid abutment
One-piece cement-retained abutment with cap, impression cap and lab analog.
Product details →Octa system
Octa and N-Octa abutments with transfer and pick-up copings, lab cylinders and healing caps.
Product details →ImplaLock system
Low-profile attachment for removable dentures with inserter, healing component and lab analog.
Product details →

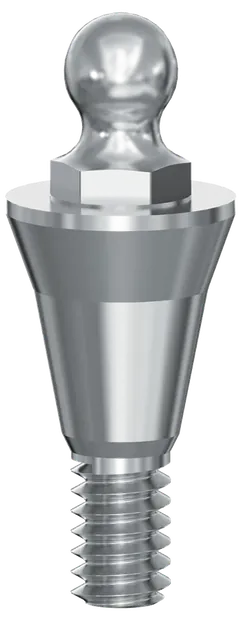

O-Ring system
Ball-attachment overdenture retention with retainers and lab analog.
Product details →- Retainers S-ORRo · S-ORR · S-ORRc
Abutment planning kit
Auxiliary kit for selecting the appropriate abutment type simply and accurately.
Product details →
Multi-unit components
Pick-up and transfer copings, plastic and titanium cylinders, healing cap and lab analog.
Product details →
Digital workflow
Scan bodies, premills, digital analogs, Ti-Base and Zr-base components cover the Bone Level, Tissue Level, Multi-Unit and Octa platforms, so a case can be scanned, designed and milled inside the system.
- Scan bodies for Bone Level, Tissue Level, Multi-Unit, Octa and Ti-Base
- Premills Ø10 · Ø14 · Ø16 mm, titanium grade 5 ELI
- Digital analogs for printed models
- Ti-Base abutments, Narrow Ti-Base in 0.5 · 1 · 2 mm
- Zr bases for Multi-Unit and Octa
Digital and multi-unit components
Scan body, Bone Level (S-PSB)
Scan body, Tissue Level (S-TSB)
Scan body, Multi-Unit (S-PMUSB)

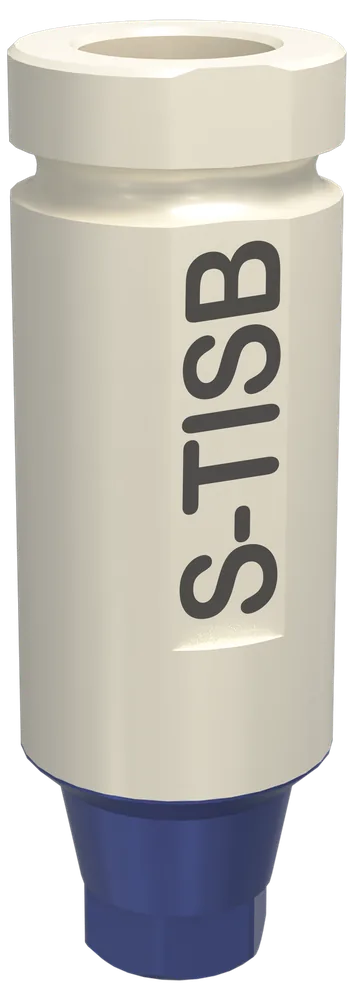

Scan body, Ti-Base (S-TISB)
Premill Ø10 mm (S-BPA10)
Digital analog, Bone Level (S-BFDLA)
Ti-Base abutment, Narrow
Zr base, Multi-Unit (S-MUTB)

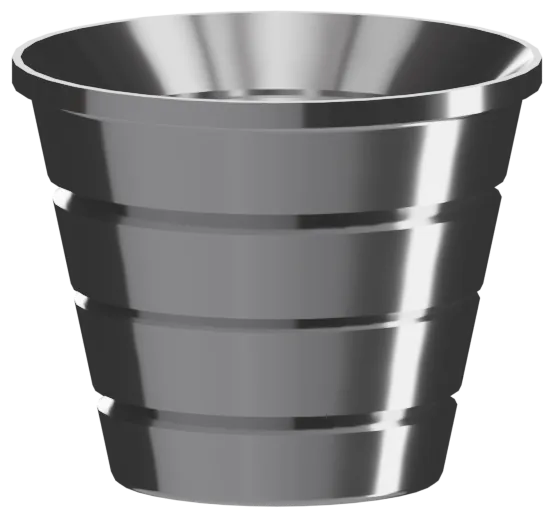

Zr base, Octa (S-OTB)

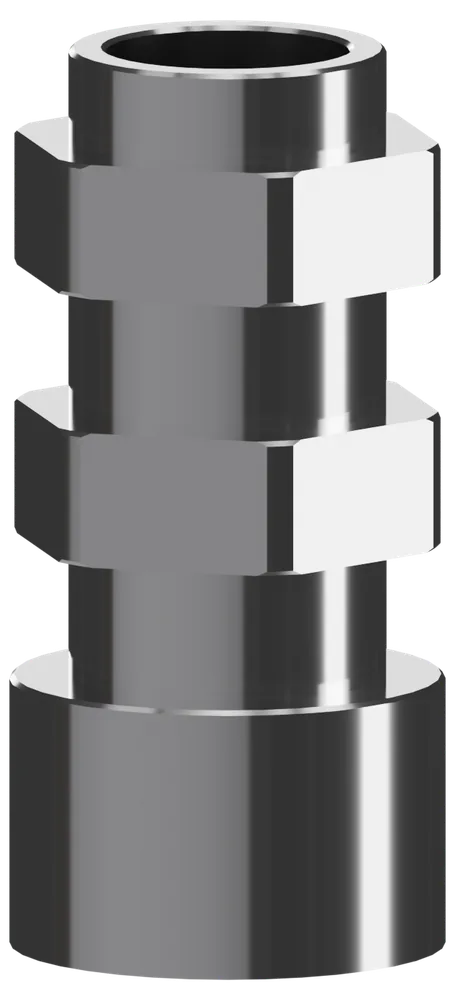

Multi-unit impression coping, pick-up

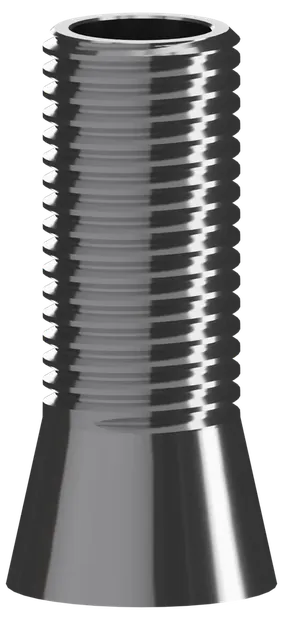

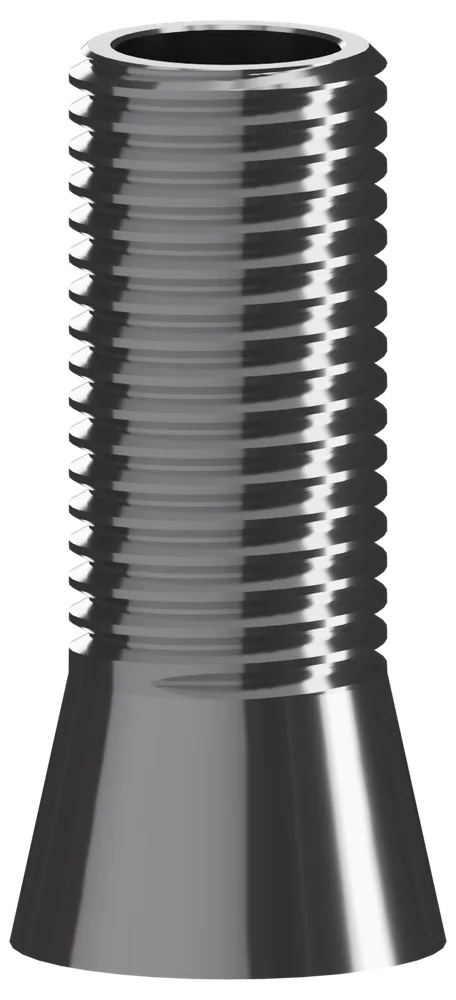

Multi-unit titanium cylinder
Multi-unit lab analog
Catalogs and manuals
English editions. French and German catalogs will be added when the files are supplied.
- Implantswiss brochurePDF · 2.0 MB · EN · 16 pages · Rev 10.2025
- Zygoma implant catalogPDF · 4.5 MB · EN · 8 pages · 10.2021
- Narrow implant brochurePDF · 2.7 MB · EN · 8 pages · 07.2023 rev1
- Multi-unit abutment leafletPDF · 127 KB · EN · 2 pages · 06.2020
- Guided surgery systemPDF · 2.7 MB · EN · 12 pages
- Prosthetic manualPDF · 3.9 MB · EN · 37 pages
- PACE cataloguePDF · 3.0 MB · EN · 14 pages
- PACE flyerPDF · 3.2 MB · EN · 2 pages
