Implant Swiss Zygoma: Zygoma

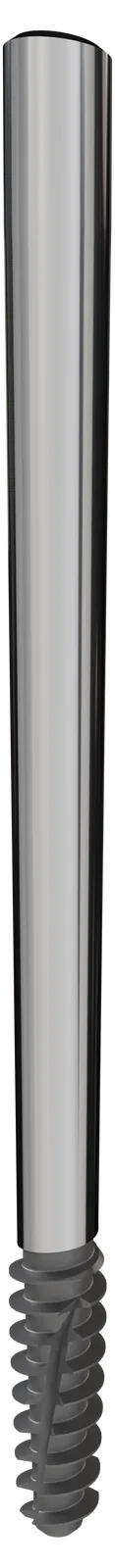

Ø4.0 zygomatic implants from 35 to 60 mm for the severely resorbed maxilla, with a 1.5° index-free conical connection and 45°/55° multi-unit abutments.
Variants and codes
- Brand
- Implant Swiss — Two-piece implant system
- Family
- Zygoma
- Type
- Zygomatic implants
- Category
- Implants
- Diameter
- Ø4.0 mm
- Lengths
- 35 – 60 mm in 2.5 mm steps (11 lengths)
- Connection
- 1.5° conical, index free
Specifications
- 01
No implant driver
The implant is inserted without a separate driver.
- 02
1.5° conical internal connection
Cold-welding taper, 3 mm deep, index free — unlimited abutment routing; connection gap below 10 µm.
- 03
45° and 55° multi-unit abutments
Screwless abutment options for flexible prosthetic applications.
- 04
Special thread design
Easier placement with minimum stress to the bone.
- 05
Ti-Al-N coated drills
Twist drills with titanium aluminium nitride coating; colour-coded depth gauge.
Fixture and kit codes
| Length | 35 | 37.5 | 40 | 42.5 | 45 | 47.5 | 50 | 52.5 | 55 | 57.5 | 60 mm |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | S-ZYG35 | S-ZYG37.5 | S-ZYG40 | S-ZYG42.5 | S-ZYG45 | S-ZYG47.5 | S-ZYG50 | S-ZYG52.5 | S-ZYG55 | S-ZYG57.5 | S-ZYG60 |
Lengths as listed in the Implantswiss brochure Rev 10.2025.
| Instrument | Sizes | Codes |
|---|---|---|
| Zygoma point drill | — | S-PD2970 |
| Zygoma burr / diamond burr | — | S-ZBURN |
| Twist drill Ø2.5 | short · long | S-TWD2565 · S-TWD25100 |
| Twist drill Ø2.9 | short · long | S-TWD2965 · S-TWD29100 |
| Handle | — | S-ZHDL |
| Depth gauge | straight · angled | S-ZDIS · S-ZDIA |
| Drill guard | standard · short | S-ZDG · S-ZDGS |
Zygoma catalog 10.2021.
| Component | Code |
|---|---|
| Multi-unit abutment 45° / 55° | I-SMUA5050-45(3) / I-SMUA5050-55(3) |
| Multi-unit impression coping, pick-up / transfer | S-BMUAICP / S-MUATN |
| Multi-unit lab analog | S-BMUALA |
| Multi-unit plastic / titanium cylinder | S-MUAPICYN / S-MUATICYN |
| Multi-unit healing cap | S-BMUAHCap |
| Digital analog · scan body · Zr base | S-BMDLA · S-PMUSB · S-MUTB |
Zygoma catalog 10.2021, “Zygoma Prosthesis”.
Connection
1.5° conical internal connection with a depth of 3 mm, index free; screwless abutments are seated by cold welding. Prosthetic restoration uses the 45° and 55° multi-unit abutments and the multi-unit component set listed above.
Zygoma surgical kit

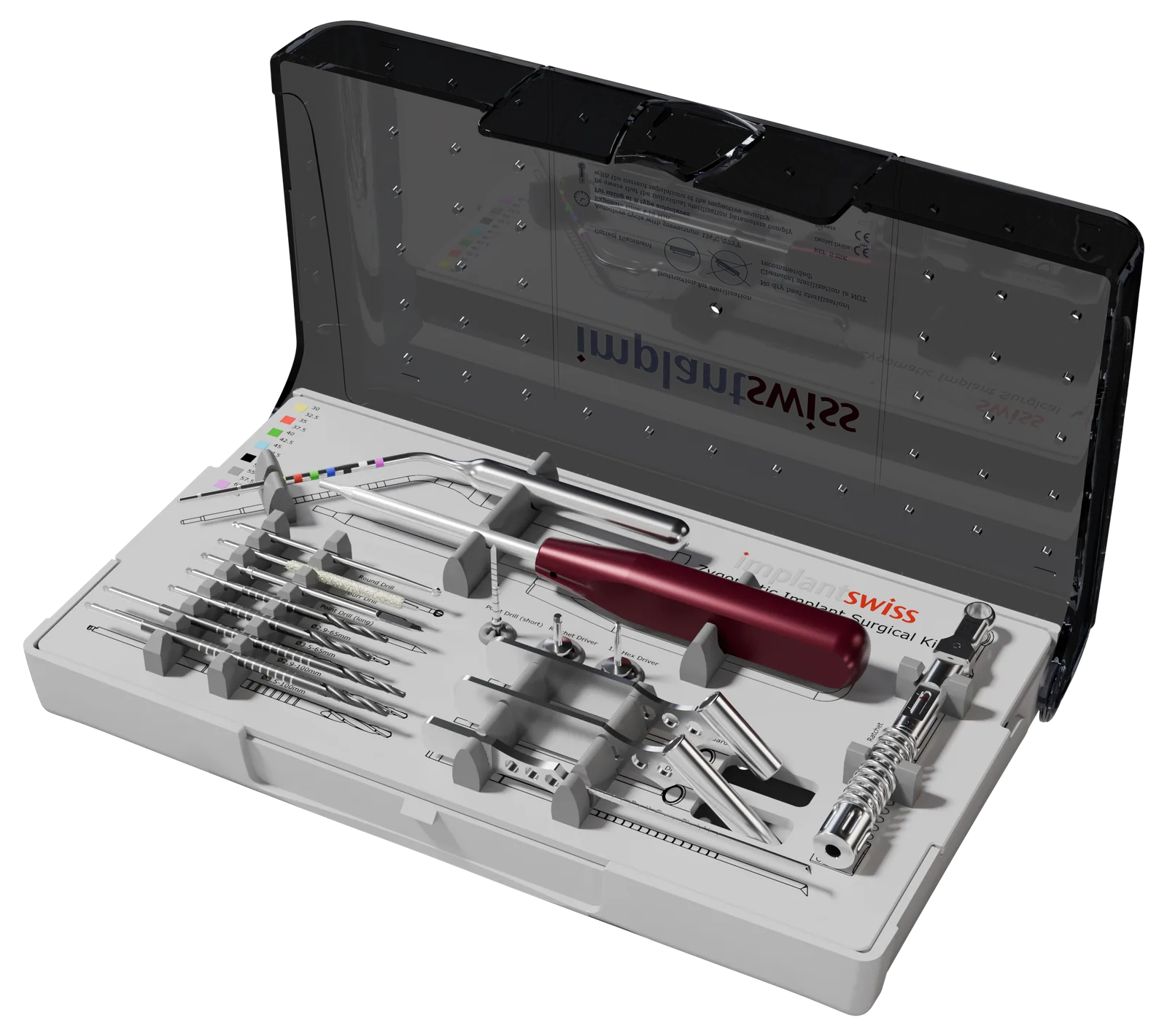

Zygoma surgical kit
Zygoma point drill, diamond burr, Ø2.5 and Ø2.9 twist drills in short and long versions, straight and angled depth gauges, drill guards and handle.
Catalogs and documents
Documented compatibility
Only combinations stated in the product documentation are listed here; related products of the same brand are not assumed to be compatible.
- Multi-unit abutments 45° / 55° and multi-unit components →Listed for the Zygoma implant in the Zygoma catalog 10.2021 (I-SMUA5050-45(3), -55(3) and the S-BMUA… component set).
- Zygoma surgical kit →Dedicated drills, depth gauges and guards (Zygoma catalog).
