Monoimplant: One-piece special design.
Fixture and abutment in a single monolithic body. Bicortical anchorage and the absence of a screw joint are the basis for immediate-loading protocols in suitable cases.
Explore the types
System specifications
Designed to promote osseointegration in clinically challenging situations when used according to the recommended protocol; with adequate primary stability, prosthetic rehabilitation may take place within a shortened timeframe.
- 01
Bicortical anchorage
Fixated between both cortical plates — entry and exit point — for strong primary stability that does not depend on the weaker trabecular bone.
- 02
One-piece body
No abutment screw, so no screw loosening, screw fracture or micro-movement at an implant–abutment interface; less space needed than a two-piece implant.
- 03
RBM surface
Resorbable blast media with calcium phosphate on Rough, Rough B, MOT, Multiunit and Oring implants; Smooth implants keep a polished surface.
- 04
Cutting thread
Threads designed to slice the bone with thin cuts rather than compress it, so more bone contributes to stability.
- 05
Bendable neck
Long-neck variants can be bent to establish parallelism after pre-drilling and bone expansion; maximum insertion torque 45 Ncm.
- 06
Titanium grade 5
Machined from biocompatible grade 5 titanium; two abutment sizes, normal and large, that can be trimmed and welded.
- 07
Traceability
Every package carries a barcode with the ERP lot number, so each implant can be followed from production to clinic.
- 08
Tyvek® packaging
Sterile, recyclable Tyvek® containers; the implant is removed and loaded with the fixture driver.
Seven implant types
The same one-piece principle in different surfaces, thread designs and prosthetic heads. Ranges below are the catalogue dimensions; codes follow in the next section.

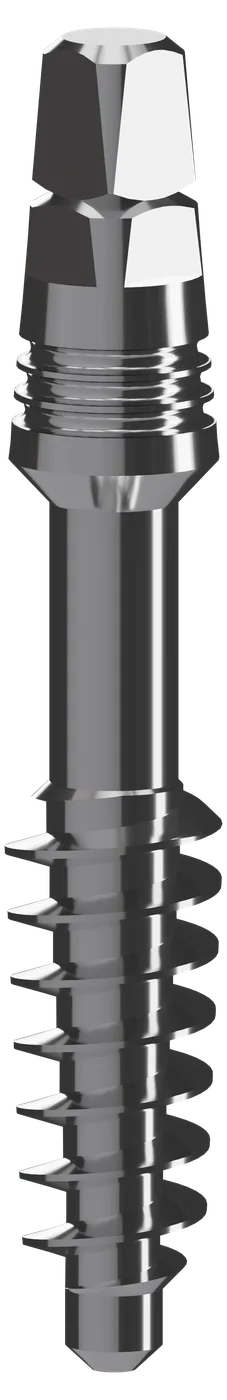

Smooth
Smooth surface with an aggressive thread for immediate placement in extraction sockets and hard bone (D1–D2); the polished body retains less plaque.
- Diameter
- Ø2.7 · 3.5 · 4.0 · 4.5 · 5.5 · 7.0 · 9.0
- Length
- 8 – 35 mm
- Abutment
- normal · large
Ø2.7 is not intended as a single implant; in a thin jawbone at least 12 implants per jaw are required.
Product details →

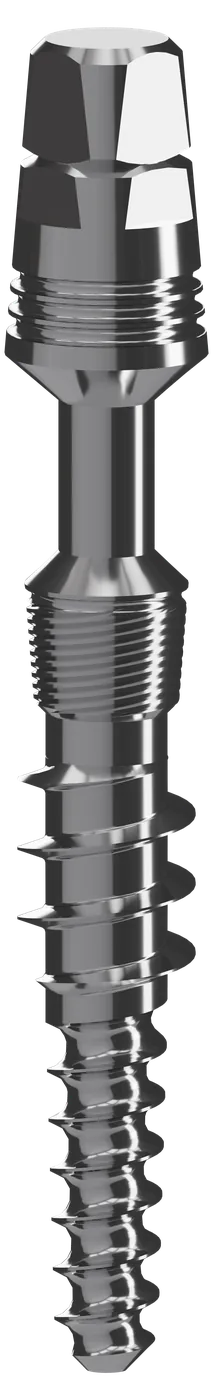

Microthread
Smooth-surface implant whose cervical micro-threads stabilise extraction-socket walls; the sharp apex penetrates thin, dense cortical plates. Use a minimum of three implants for immediate loading.
- Diameter
- Ø3.5 · 4.0
- Length
- 12 – 29 mm
- Abutment
- large
Rough
RBM surface with a slim, less aggressive body for D1 and D2 bone and healed edentulous sites.
- Diameter
- Ø3.0 · 3.2 · 3.7 · 4.1 · 4.9
- Length
- 6 – 17 mm
- Abutment
- normal · large

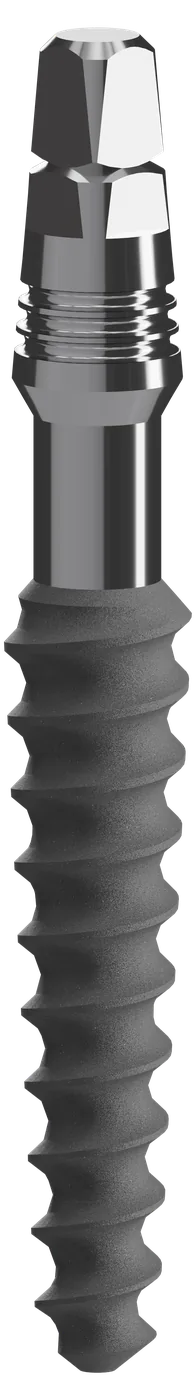

Rough B — bendable
Rough implant with a bendable neck, used after pre-drilling and bone expansion with the tapping drill. For bridges in the reduced-load range, not for single-tooth restorations.
- Diameter
- Ø3.2 · 3.7 · 4.1
- Length
- 12 · 15 · 17 mm
- Torque
- max. 45 Ncm

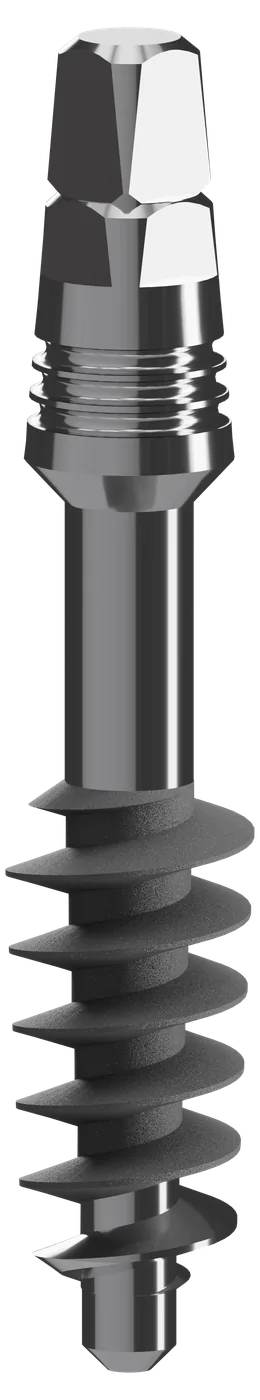

MOT — Rough + Smooth
Hybrid: rough body for osseointegration, highly polished apex to reduce contamination in thin-bone regions such as the maxillary sinus.
- Diameter
- Ø3.5 · 4.0 · 4.5
- Length
- 10 – 26 mm

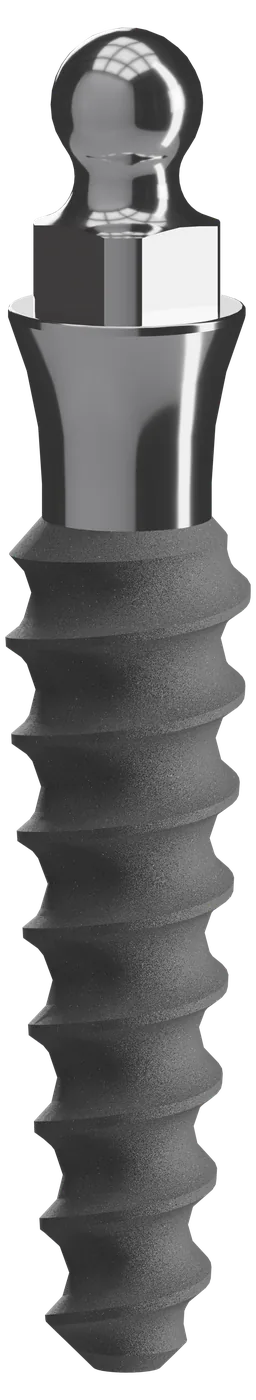

Oring
Ball-head one-piece implant for overdenture retention, with silicone retainers in three hardnesses and directional rings.
- Diameter
- Ø3.0 · 3.7 · 4.1
- Length
- 8 · 10 · 12 mm
- Rings
- 0° · 7° · 14°

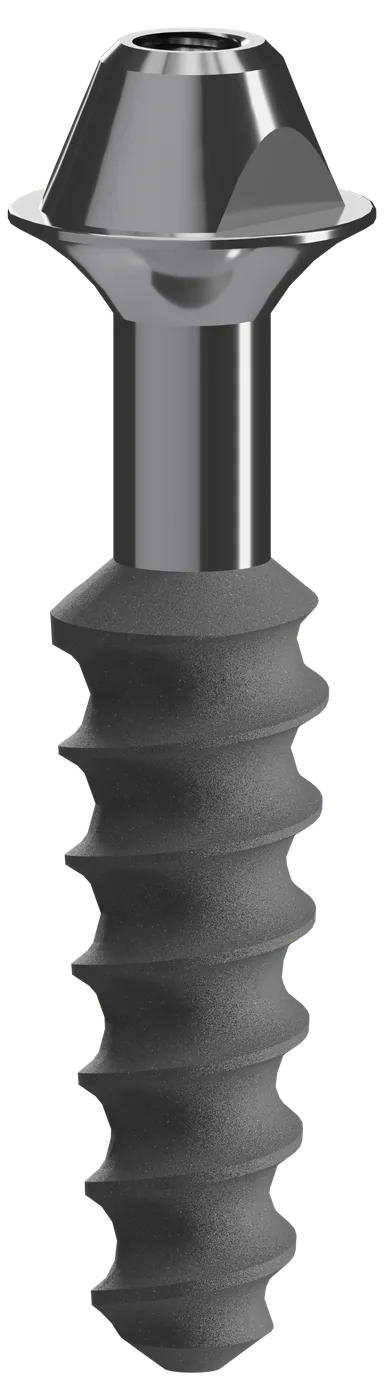

Multiunit
Multi-unit head for screw-retained restorations fixed with an occlusion screw only — no cement.
- Diameter
- Ø3.0 · 3.7 · 4.1
- Length
- 8 · 10 · 12 mm
Impression components and superstructures
Transfer, burn-out cap and lab analog for the normal and large abutments (MIC and MIC-LAb); multi-unit transfer, lab analog, plastic cylinder and healing cap; Oring healing cap, lab analog, directional rings and retainers.

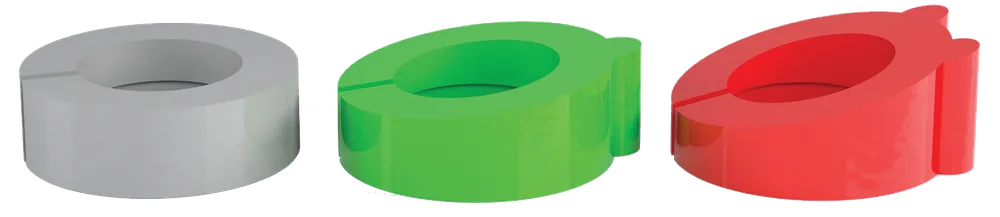

- Directional rings 0° · 7° · 14° (MORR-A)
- Retainers: pink soft 900 g · yellow extra-soft 500 g · green elastic 350 g
- Abutments can be trimmed for prosthetic ease and are compatible with welding (syncrystallization)
Component renders

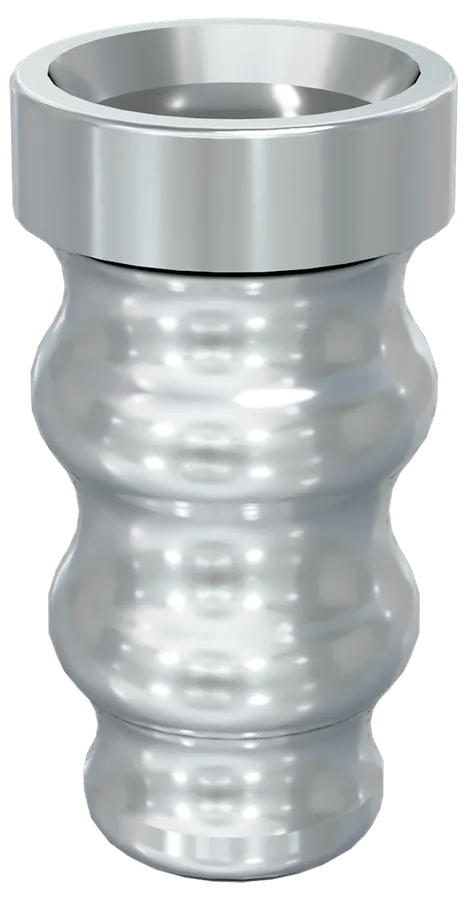

Multiunit transfer (MMUAT)

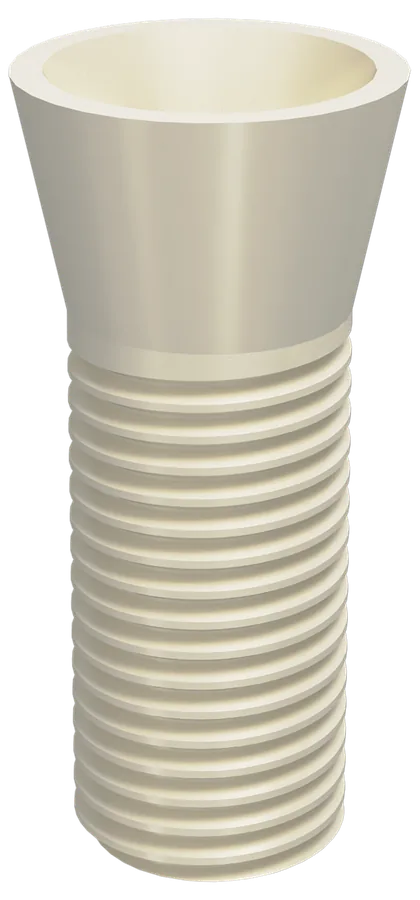

Multiunit plastic cylinder (MMUAPlCyN)

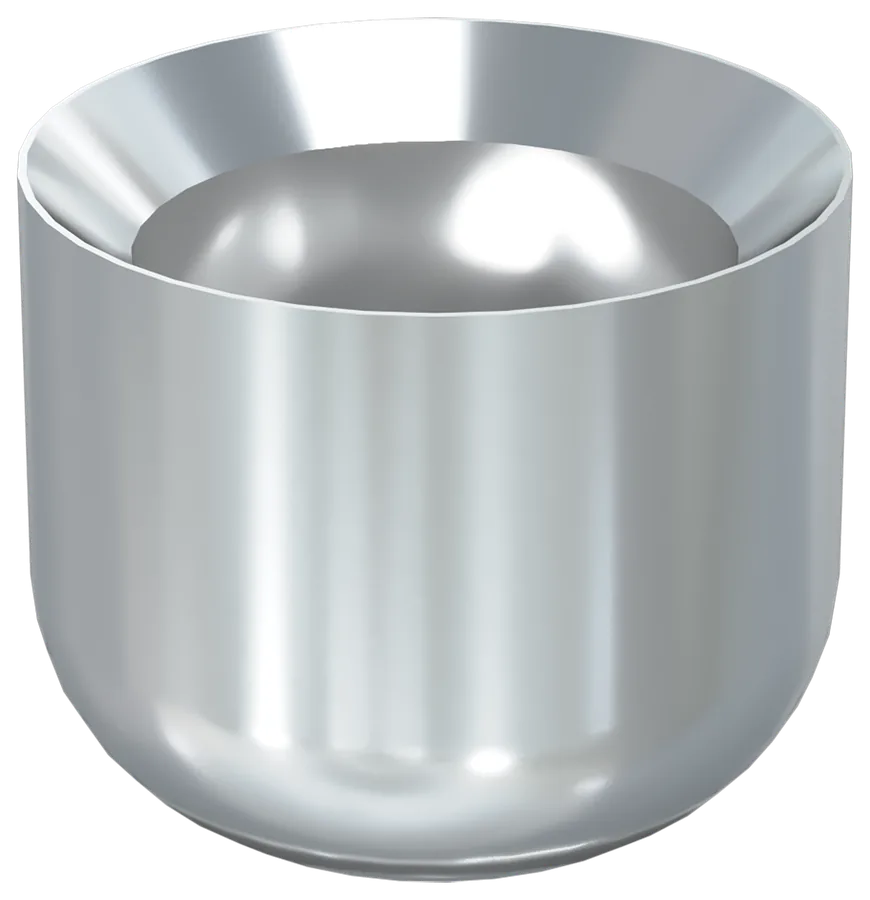

Multiunit healing cap (MMUAHCap)

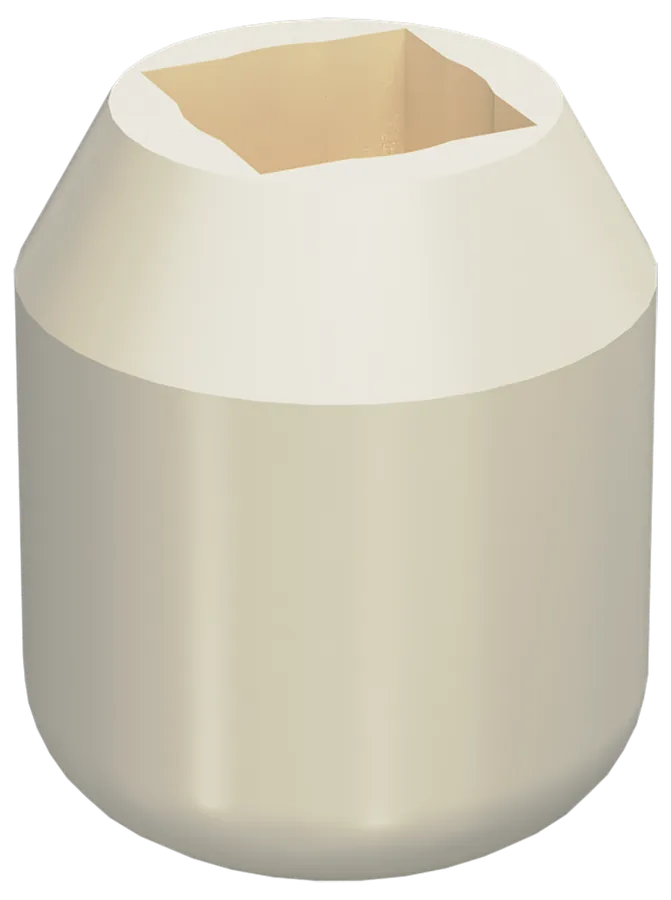

Oring healing cap (MORH)

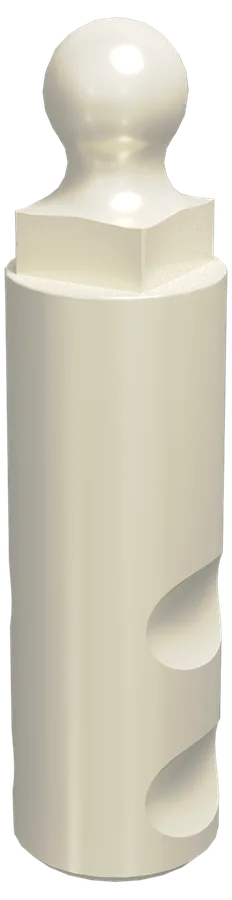

Oring lab analog (MORLA)
Oring ball head

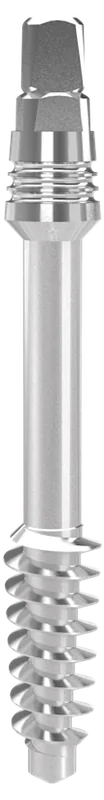

Bendable neck, straight

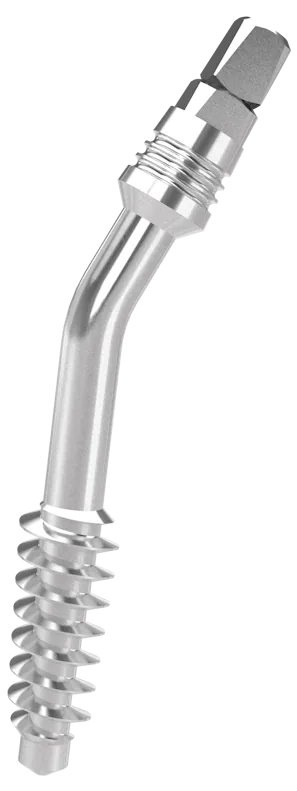

Bendable neck, bent to 25°
Surgical kit
Designed for ease of use and minimally invasive implantation, the kit contains the drills, drivers and taps for every diameter in the system.
Surgical kit
Ratchet with torque control, ratchet- and handpiece-compatible short and long drivers, short and long lance drills, and bone taps for Rough implants compatible with all diameters.
Product details →
Handle and tools
Drivers and lance drills are carried and exchanged on the Monoimplant handle; the animation shows the assembly.
Digital impression components

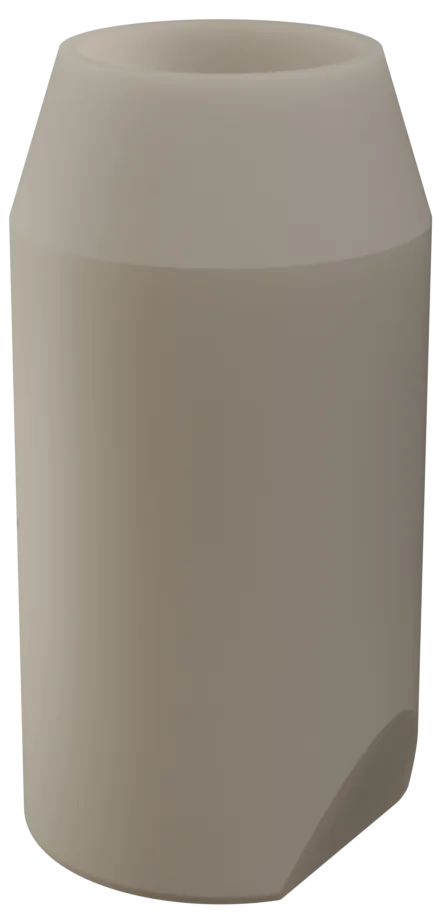

Scan body and digital lab analog for the normal and large abutments bring Monoimplant restorations into the CAD/CAM workflow.
- Scan body MSB · MSB-LAb
- Digital lab analog MDLA · MDLA-LAb
