Implant Swiss Short: Short
4, 5 and 6 mm implants for limited bone height above the mandibular canal or below the maxillary sinus.
Variants and codes
- Brand
- Implant Swiss — Two-piece implant system
- Family
- Short
- Type
- Short dental implants (bone and tissue level)
- Category
- Implants
- Lengths
- 4 · 5 · 6 mm
- Diameters
- Ø4.3 · 4.8 · 5.5 mm
- Material
- Titanium grade 4
Features
- 01
Bone Level short
Ø4.3 · 4.8 · 5.5 in 5 and 6 mm; aggressive thread for the softer maxilla.
- 02
Tissue Level short
Ø4.3 · 4.8 · 5.5 in 4, 5 and 6 mm; machined neck, GH 2.65 mm.
- 03
Dedicated kit
The Short Implant Surgical Kit is recommended for both Bone and Tissue Level short implants.
Fixture codes
| Length | Bone Level Ø4.3 | Bone Level Ø4.8 | Bone Level Ø5.5 | Tissue Level Ø4.3 | Tissue Level Ø4.8 | Tissue Level Ø5.5 |
|---|---|---|---|---|---|---|
| 4 mm | — | — | — | S-TFSR4304 | S-TFSR4804 | S-TWFSR5504 |
| 5 mm | S-BMFSR4305 | S-BMFSR4805 | S-BMFSR5505 | S-TFSR4305 | S-TFSR4805 | S-TWFSR5505 |
| 6 mm | S-BMFSR4306 | S-BMFSR4806 | S-BMFSR5506 | S-TFSR4306 | S-TFSR4806 | S-TWFSR5506 |
Implantswiss brochure Rev 10.2025.
Connection
Bone Level short implants use the Bone Level conical-hex connection; Tissue Level short implants use the Tissue Level connection. Prosthetic and digital components follow the respective platform.

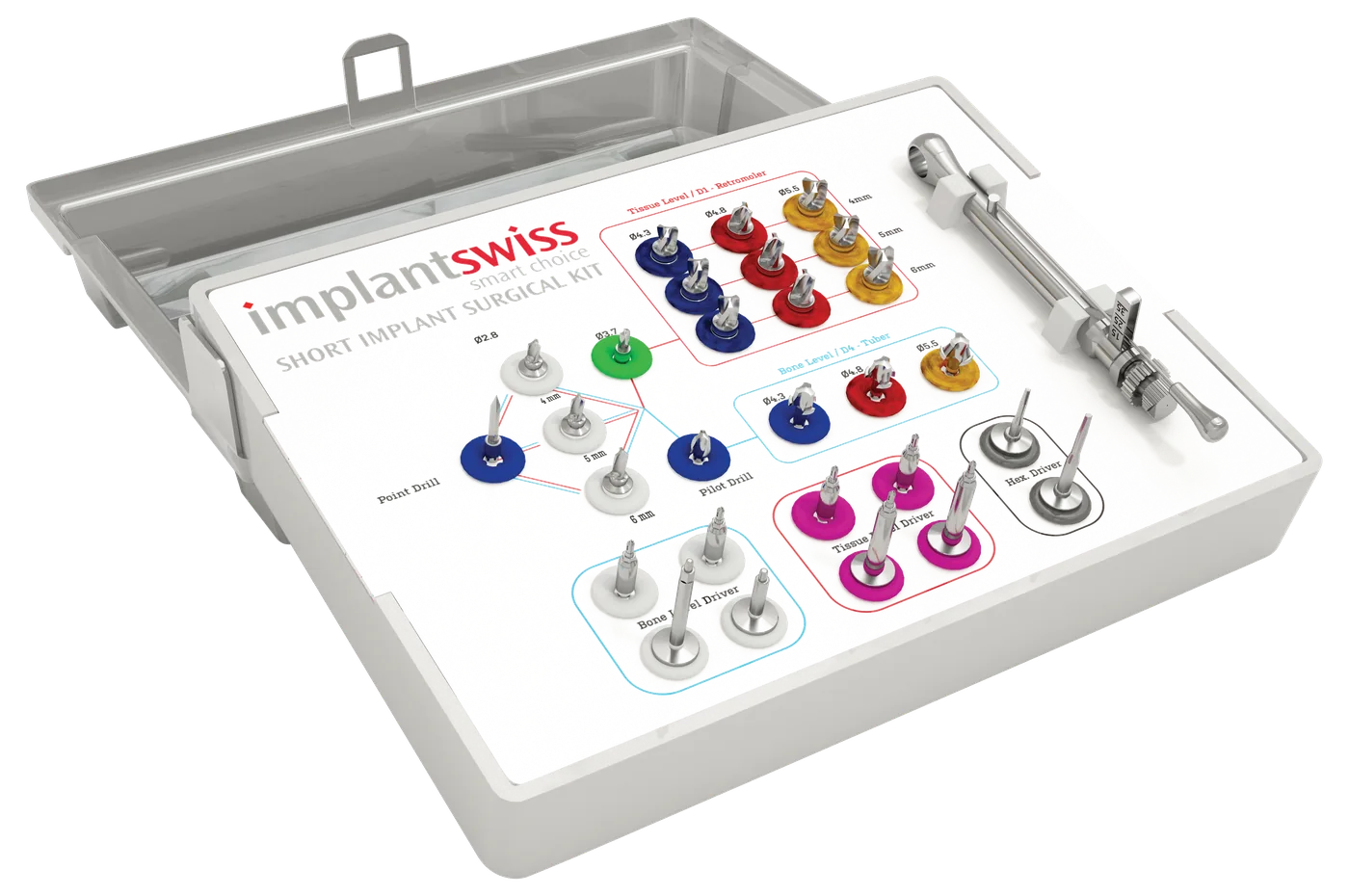

Short implant surgical kit
Short implant surgical kit
Bone Level and Tissue Level drills and drivers for 4, 5 and 6 mm implants, pilot and point drill, hex screw drivers and torque-controlled ratchet.
Catalogs and documents
Documented compatibility
Only combinations stated in the product documentation are listed here; related products of the same brand are not assumed to be compatible.
- Short implant surgical kit →Recommended for both Bone and Tissue Level short implants (brochure Rev 10.2025).
