Implant Swiss Bone Level: Bone Level
Two-piece bone-level implants with a sealed conical-hex connection and SRA surface — Regular Ø3.7–5.5, Mini Ø3.3 and Narrow Ø2.9.
Variants and codes
- Brand
- Implant Swiss — Two-piece implant system
- Family
- Bone Level
- Type
- Bone-level dental implants
- Category
- Implants
- Platforms
- Regular · Mini (Ø3.3) · Narrow (Ø2.9)
- Material
- Titanium grade 4 (grade 5 for Ø2.9)
- Insertion torque
- 35 Ncm
- Drivers
- Bone Level · Mini Bone · Narrow driver
Design features
- 01
Hybrid design
Straight cylindrical neck over a tapered apical body: minimal stress on the crestal cortical bone, easy insertion.
- 02
SRA surface
Sandblasted, then double acid-etched; a homogeneous roughness that follows the bone morphology.
- 03
Self-cutting edge
Semi-aggressive thread with cutting edges for primary stability in any bone type.
- 04
Structure without micro-threads
No micro-threads at the cervical area — less plaque retention around the neck.
- 05
Conical connection with hexagonal index
Sealed implant–abutment interface; platform switching keeps the interface away from the crestal bone.
- 06

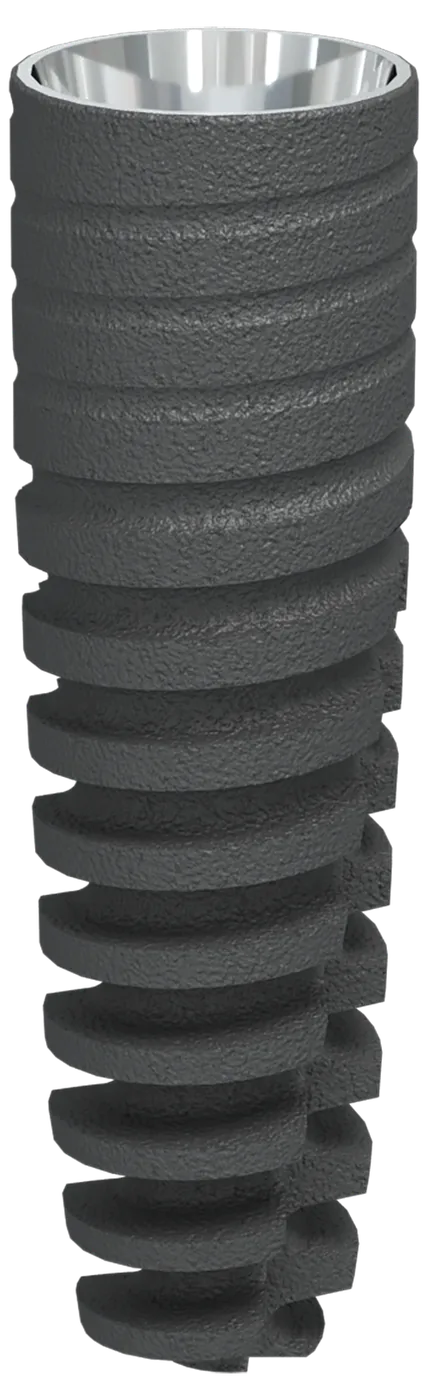

Narrow Ø2.9
Hybrid body, narrow internal connection, passive thread at the neck and threads deepening towards the apex; titanium grade 5.
Variants and fixture codes
Codes as listed in the Implantswiss brochure Rev 10.2025 and the folding brochure 09.2022 (Narrow).
| Variant | Diameter | Lengths | Prosthetic platform | Driver |
|---|---|---|---|---|
| Regular | Ø3.7 · 4.3 · 4.8 · 5.5 | 8 · 10 · 12 · 14 mm | Regular (all Bone Level abutments) | Bone Level driver |

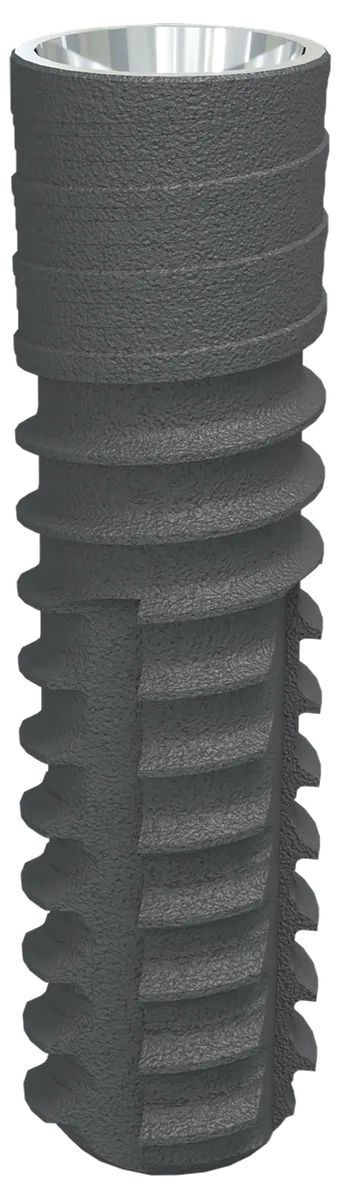

| Mini | Ø3.3 | 8 · 10 · 12 · 14 mm | Mini platform | Mini Bone driver |
| Narrow | Ø2.9 (apex Ø2.0) | 10 · 12 · 14 mm | Narrow Ø3.5 components | Narrow driver |
| Length | Ø2.9 Narrow | Ø3.3 Mini | Ø3.7 | Ø4.3 | Ø4.8 | Ø5.5 |
|---|---|---|---|---|---|---|
| 8 mm | — | S-BMFSR3308 | S-BFHR3708 | S-BFHR4308 | S-BFHR4808 | S-BWFHR5508 |
| 10 mm | S-BNFHR2910 | S-BMFSR3310 | S-BFHR3710 | S-BFHR4310 | S-BFHR4810 | S-BWFHR5510 |
| 12 mm | S-BNFHR2912 | S-BMFSR3312 | S-BFHR3712 | S-BFHR4312 | S-BFHR4812 | S-BWFHR5512 |
| 14 mm | S-BNFHR2914 | S-BMFSR3314 | S-BFHR3714 | S-BFHR4314 | S-BFHR4814 | — |
| Component | Options | Codes |
|---|---|---|
| Couple abutment | GH 2 · 3 · 4 · 6 mm | S-BNCA35207 · 35307 · 35407 · 35607 |
| Angled abutment 15° | cuff 2 · 3 mm | S-BNAA35152 · S-BNAA35153 |
| Healing abutment | 3 · 6 mm | S-BNHA3530 · S-BNHA3560 |
| Ti-Base abutment | 0.5 · 1 · 2 mm | S-BNTiA05 · S-BNTiA10 · S-BNTiA20 |
| Temporary abutment | 14.85 mm | S-BNTA35 |
| Impression coping | pick-up · transfer | S-BNICP37 · S-BNICT37 |
| Lab analog · closing screw · abutment screw | — | S-BNFLA · S-BNCLS · S-BNAS |
Narrow brochure 07.2023. Narrow driver S-BNFMR / S-BNFDR, Ø2.2 Lindemann drill S-LD2020.
Connection and platform
Universal conical connection with hexagonal index. On the Regular platform every Implant Swiss abutment fits every fixture diameter; the Ø3.3 Mini fixture uses the Mini platform and the Ø2.9 Narrow fixture its own narrow internal connection with Ø3.5 components.

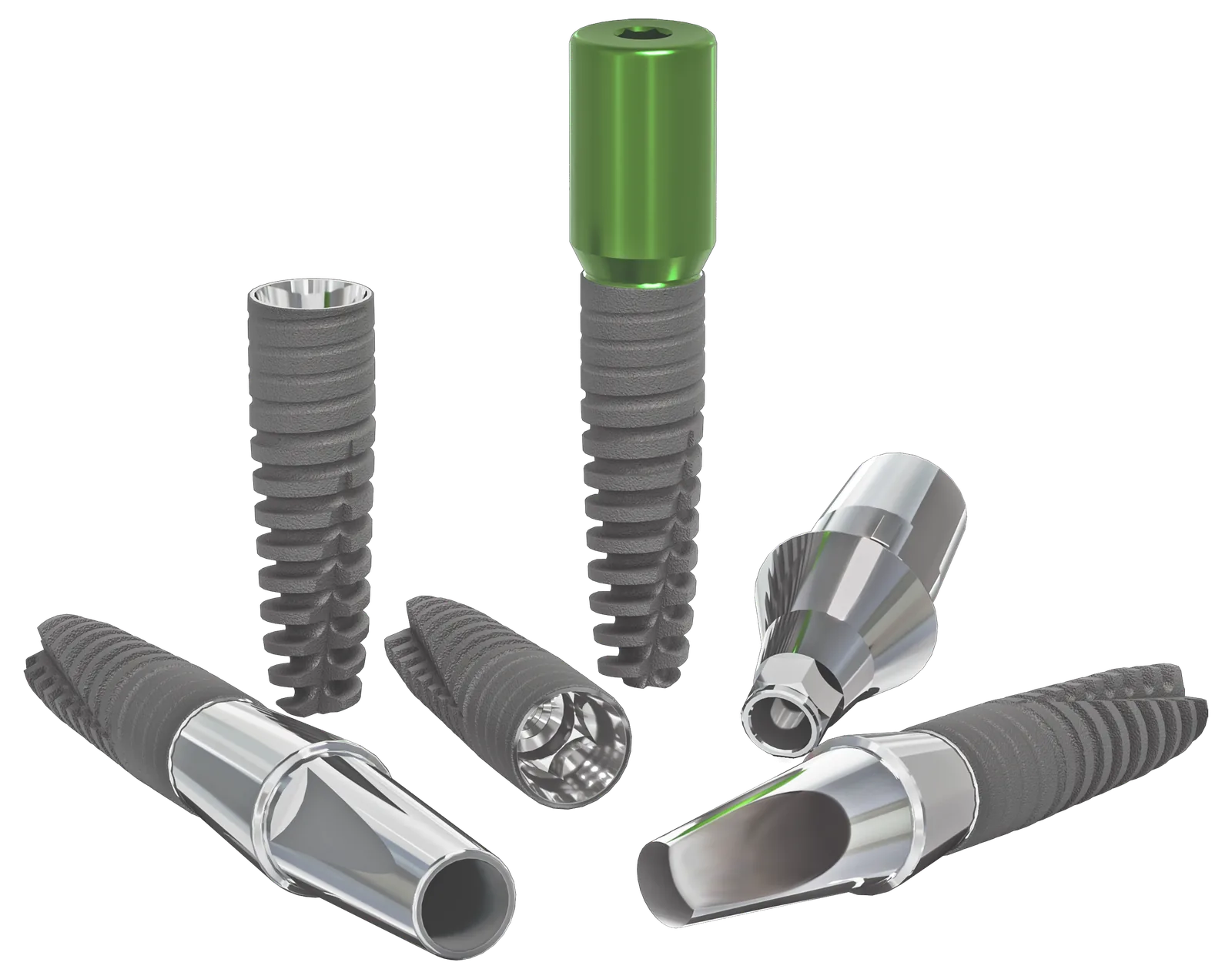

Narrow Ø2.9 — indications
Developed for the anterior region where the mesio-distal distance is not sufficient or the crest is extremely thin.
- Indicated for single-tooth restorations only: central and lateral incisors in the mandible, lateral incisors in the maxilla
- Contraindicated for bridges and edentulous cases
- Hybrid body design, narrow inner connection, no stress on the crestal bone due to the passive thread neck design
Documented compatibility
Only combinations stated in the product documentation are listed here; related products of the same brand are not assumed to be compatible.
- Implant Swiss prosthetic systems →All Bone Level abutments fit all fixture diameters except Ø3.3, which uses the Mini platform (brochure Rev 10.2025).
- Digital components — Bone Level →Scan body S-PSB, digital analog S-BFDLA and premills S-BPA10/14/16; S-PMSB, S-BMFDLA and S-BMPA10/14 for the Ø3.3 fixture.
- Regular surgical kit →Colour-coded drills for each diameter and length in the system.
