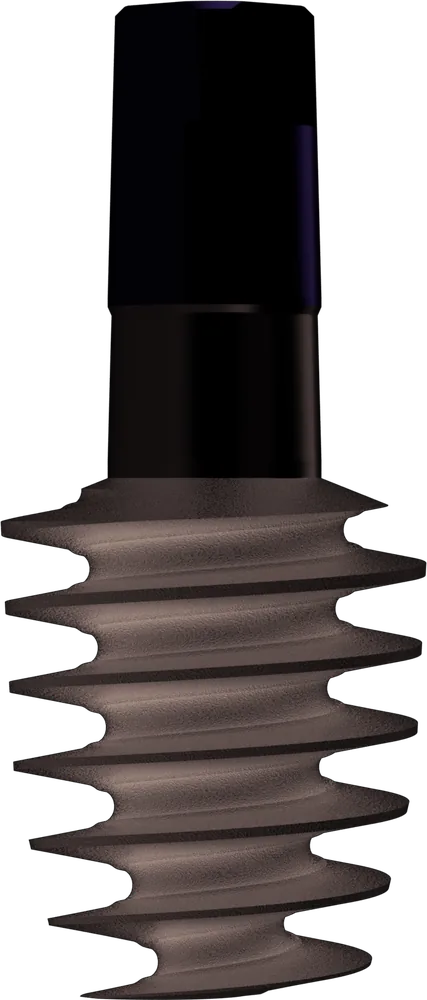

i-LiNQ i-LiNQ® Implant: i-LiNQ® Implant
Two-piece implant with a 1.5° locking-taper connection; the i-LiNQ® component is placed at uncovering and never removed again.
Features
- Brand
- i-LiNQ — Implant and abutment system
- Family
- i-LiNQ® Implant
- Type
- Two-piece implants with the i-LiNQ® component
- Category
- Implants
- Diameters
- 2.7 – 6.0 mm
- Lengths
- 8.0 – 14.0 mm
- Connection
- 1.5° locking taper
- Loading
- delayed or immediate, depending on bone quality
Design
- 01
i-LiNQ® connection
1.5° conical locking taper; cementless suprastructure placement; indexed or non-indexed positioning.
- 02
Hybrid design
Subcrestal implant positioning with a minimised emergence-profile diameter at the crest.
- 03
Bionic body
Diameter-independent implant body with optimised force distribution.
- 04
Healing chambers
Open spaces between the threads for vascularised, Haversian-like bone formation.
- 05
Progressive thread
Stress-reducing geometry, minimised bone trauma, optimised primary stability; immediate loading possible in suitable cases.
- 06
Sloping shoulder
Shoulder form in line with the transversal bone profile for crestal bone support.
Connection
Retention and force transfer between implant and i-LiNQ® component rely on the cold welding of a 1.5° conical taper. The component is seated at uncovering and stays in place; all prosthetic components seat on it at gingival level.
Catalogs and documents
Documented compatibility
Only combinations stated in the product documentation are listed here; related products of the same brand are not assumed to be compatible.
- i-LiNQ® prosthetic components →i-cement, i-connect, i-conometric, i-ball and i-locator abutments seat on the i-LiNQ® component (Novodent product text).
- i-System implants →Novodent's product renders show the i-LiNQ® components seated on the i-System implant; both use a 1.5° locking conical connection.
