i-System Prosthetic components: Prosthetic components
Shouldered and non-shouldered abutments, multi-unit, ball, locator, healing, Ti-Base and sinus abutments with impression posts and analogs for the 2.0, 2.5 and 3.0 posts.
Variants and codes
- Brand
- i-System — Short implant system
- Family
- Prosthetic components
- Type
- Abutments, impression components and analogs
- Category
- Prosthetics
- Abutment width
- 4.0 – 6.5 mm
- Gingival height
- 1 – 6 mm
- Material
- Ti-6Al-4V ELI (ASTM F136), non-indexed
Component groups
- 01
Shouldered abutments
Cement-retained crowns and bridges, H 6.5 mm; straight and 15° / 25° angled.
- 02

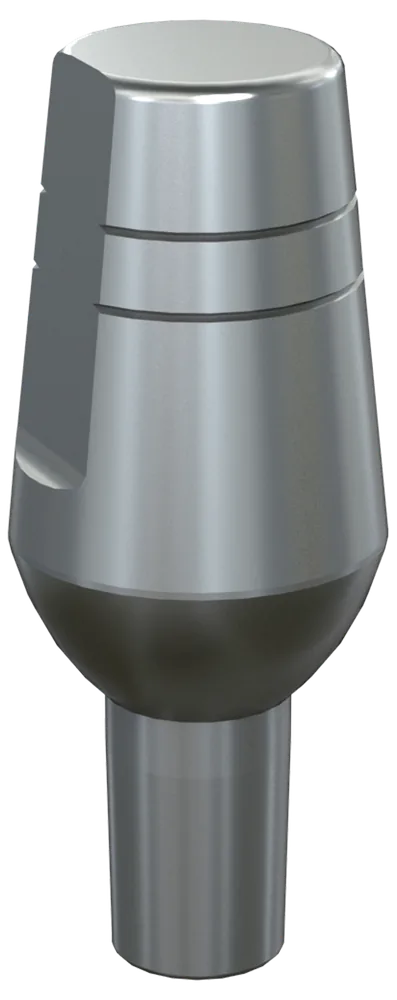

Non-shouldered abutments
Cement-retained restorations with a 7.5 mm post; straight and angled.
- 03
Multi-unit abutments
Straight (GH 1–5) and angled 17° / 33° for screw-retained bridges; healing cap, burn-out cylinder, pick-up coping and analog.
- 04
Ball and locator abutments
Attachment-retained overdentures with retainers, housings and analogs.
- 05
Healing, Ti-Base and sinus abutments
Healing abutments in Ø4.0–6.5; Ti-Base Ø4.5 with GH 1–3; sinus abutments Ø6.5 / Ø7.5 for the 3.0 post.
- 06
Impression components
Implant-level impression posts (with or without cap), fixture analogs, abutment-level impression caps and shouldered abutment analogs.
Options and codes
Codes follow the pattern <code> GH · width (post) — e.g. I-SSA 2040 (2) is the 2.0 post shouldered abutment, GH 2, Ø4.0.
| Post | Widths | GH straight | GH angled 15° · 25° | Codes |
|---|---|---|---|---|
| 2.0 | Ø4.0 · 5.0 | 1 · 2 · 3 · 4 · 5 · 6 | 2 · 4 · 6 | I-SSA GH·W (2) · I-SSAA GH·W-15/-25 (2) |
| 2.5 | Ø4.0 · 5.0 | 1 · 2 · 3 · 4 · 5 · 6 | — | I-SSA GH·W (2.5) |
| 3.0 | Ø5.0 · 6.5 | 1 · 2 · 3 · 4 · 5 · 6 | 2 · 4 · 6 | I-SSA GH·W (3) · I-SSAA GH·W-15/-25 (3) |
| Post | Widths | GH straight | GH angled 15° · 25° | Codes |
|---|---|---|---|---|
| 2.0 | Ø4.0 · 5.0 | 2 · 3 · 4 · 5 | 2 · 4 | I-SNSA GH·W (2) · I-SNSAA GH·W-15/-25 (2) |
| 2.5 | Ø4.0 · 5.0 | 3 · 4 · 5 · 6 | 4 · 6 | I-SNSA GH·W (2.5) · I-SNSAA …(2.5) |
| 3.0 | Ø5.0 · 6.5 | 3 · 4 · 5 | 4 | I-SNSA GH·W (3) · I-SNSAA …(3) |
| Component | Posts | Options | Codes |
|---|---|---|---|
| Multi-unit, straight | 2.0 · 2.5 · 3.0 | Ø5, GH 1 · 2 · 3 · 5 | I-SMUA 1050 · 2050 · 3050 · 5050 (post) |
| Multi-unit, angled | 2.0 · 3.0 | Ø5, GH 3 · 5, 17° · 33° | I-SMUA 3050-17/-33 · 5050-17/-33 (post) |
| Ball abutment | 2.0 · 2.5 · 3.0 | Ø5, GH 1 – 6 | I-SBA 10 … 60 (post) |
| Locator abutment | 2.0 · 2.5 · 3.0 | Ø3.86, GH 2 · 4 · 6 | I-SLA 20 · 40 · 60 (post) |
| Healing abutment | 2.0 · 2.5 · 3.0 | GH 4 · 6; Ø4.0 · 5.0 (2.0, 2.5) · Ø5.0 · 6.5 (3.0) | I-SHA 4040 … 6065 (post) |
| Ti-Base abutment | 2.0 · 2.5 · 3.0 | Ø4.5, H 4.5, GH 1 · 2 · 3 | I-STİA 1045 · 2045 · 3045 (post) |
| Sinus abutment | 3.0 | Ø6.5 × 5.0 · Ø7.5 × 6.0 | I-SSINA 5065 (3) · I-SSINA 6075 (3) |
| Component | Codes |
|---|---|
| Impression post / with cap | I-SIP (2 · 2.5 · 3) / I-SIPc (2 · 2.5 · 3) |
| Fixture analog | I-SFA (2 · 2.5 · 3) |
| Shouldered abutment-level impression cap · analog | I-SSAS 4065 · 5065 · 6565 / I-SSAA 4065 · 5065 · 6565 |
| Multi-unit burn-out cylinder · pick-up coping · analog · healing cap | I-SMUAPICYN · I-SMUAIP · I-SMUALA · I-SMUAHCap |
| Locator retainer · analog | I-SLAR · I-SLAA |
| Ball abutment retainer · analog | I-SRAR · I-SRAA |
i-system catalog 06.2021, index pp. 52–61.
Post and well
The abutment post — 2.0, 2.5 or 3.0 mm — must match the implant well; the friction-fit post replaces an abutment screw. All abutments are non-indexed and can be rotated freely before seating.
Catalogs and documents
Documented compatibility
Only combinations stated in the product documentation are listed here; related products of the same brand are not assumed to be compatible.
- i-System implants →Post size matched to the implant well: 2.0 (Ø3.0 / 3.5), 2.5 (Ø4.0 / 4.5), 3.0 (Ø4.0 – 6.0) — catalog.
